BSZ099N06LS5ATMA1
Manufacturer:
Infineon
Mfr.Part #:
BSZ099N06LS5ATMA1
Datasheet:
Description:

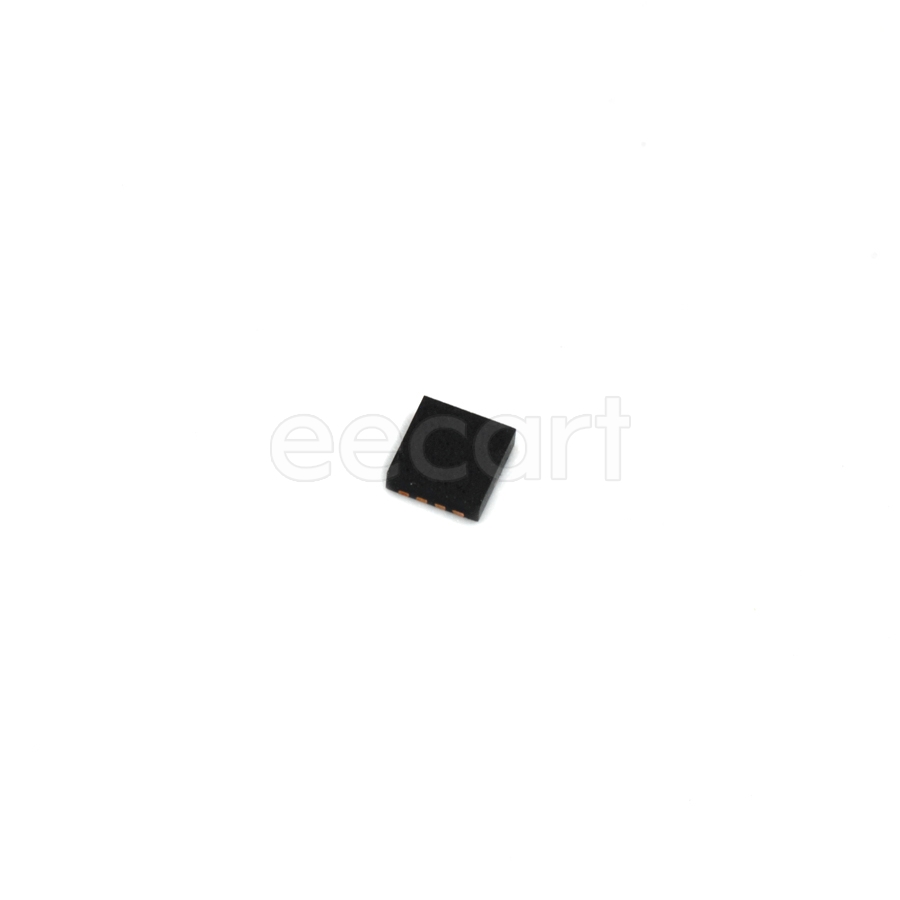

MOSFETs PG-TSDSON-8 FL SMD/SMT N-Channel number of channels:1 36 W 60 V Continuous Drain Current (ID):40 A 6.9 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Non-Compliant |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Power Dissipation | 36 W |
| Number of Channels | 1 |
| Input capacitance | 1 nF |
| Continuous Drain Current (ID) | 40 A |
| Drain to Source Voltage (Vdss) | 60 V |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 6.9 nC |
| Drain to Source Resistance | 9.9 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 60 V |
| On-State Resistance | 9.9 mΩ |
| Schedule B | 8541290080 |
| Package Quantity | 5000 |
| Gate to Source Threshold Voltage | 1.1 V |
Stock: 17504
Distributors
pcbx
pcbxUnit Price$0.66343
Ext.Price$0.66343
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66343 | $0.66343 |
| 10 | $0.43174 | $4.31740 |
| 25 | $0.39846 | $9.96150 |
| 50 | $0.36775 | $18.38750 |
| 100 | $0.33940 | $33.94000 |
| 300 | $0.30662 | $91.98600 |
| 500 | $0.27700 | $138.50000 |
| 1000 | $0.23510 | $235.10000 |
| 3000 | $0.21733 | $651.99000 |
| 5000 | $0.20091 | $1004.55000 |
| 10000 | $0.19321 | $1932.10000 |
