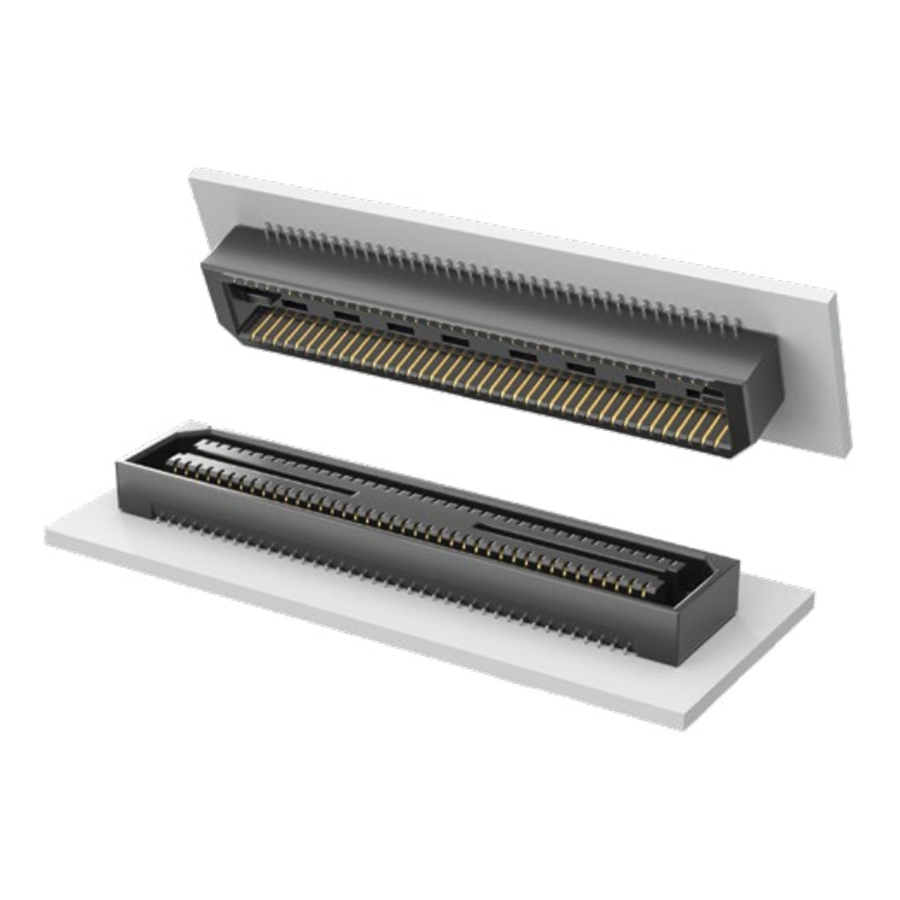

BTE-040-01-F-D-A
Manufacturer:
Samtec
Mfr.Part #:
BTE-040-01-F-D-A
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:40 Number of Rows:2 Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 36 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 225 V |
| Depth | 7.11 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 800 µm |
| Current Rating | 2 A |
| Orientation | Straight |
| Gender | Male |
| Number of Contacts | 80 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Max Voltage Rating (AC) | 225 V |
| Stack Height | 5 mm |
| Mounting Angle | Vertical |
Stock: 384
Distributors
pcbx
pcbxUnit Price$2.14673
Ext.Price$2.14673
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.14673 | $2.14673 |
| 10 | $2.08663 | $20.86630 |
| 25 | $2.02822 | $50.70550 |
| 50 | $1.97147 | $98.57350 |
| 100 | $1.85263 | $185.26300 |
| 300 | $1.72283 | $516.84900 |
| 500 | $1.60214 | $801.07000 |
| 1000 | $1.50810 | $1508.10000 |
| 3000 | $1.35641 | $4069.23000 |
| 5000 | $1.21999 | $6099.95000 |
