BTS4140NHUMA1
Manufacturer:
Infineon
Mfr.Part #:
BTS4140NHUMA1
Datasheet:
Description:

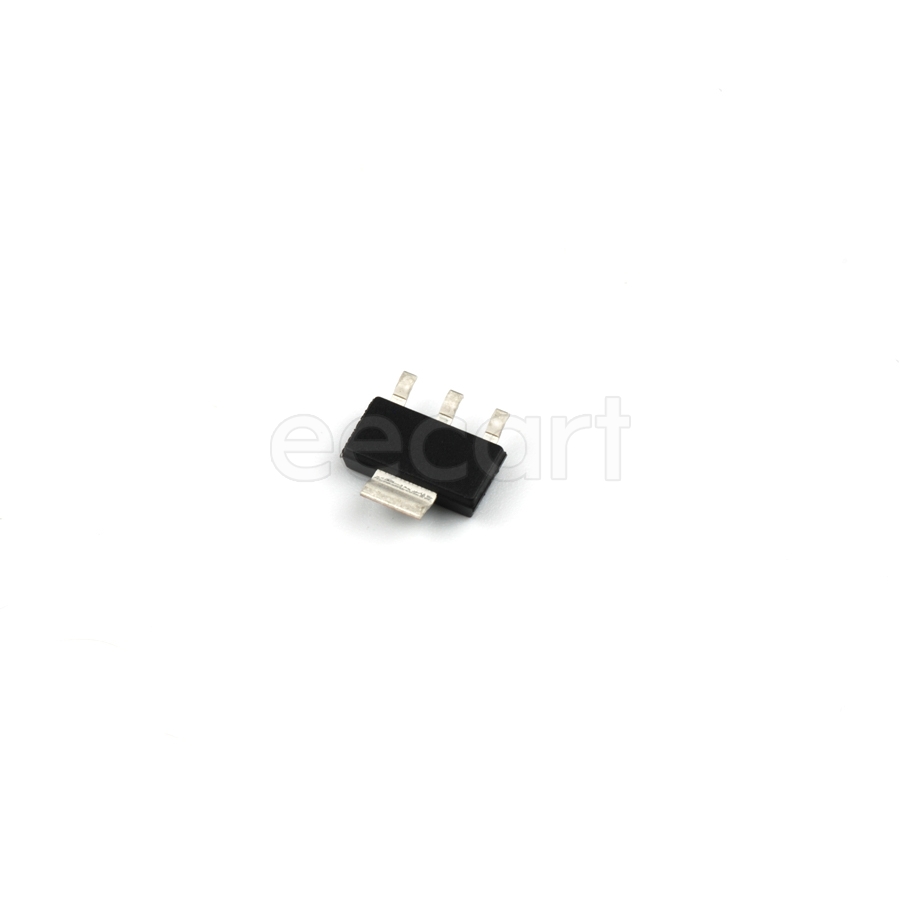

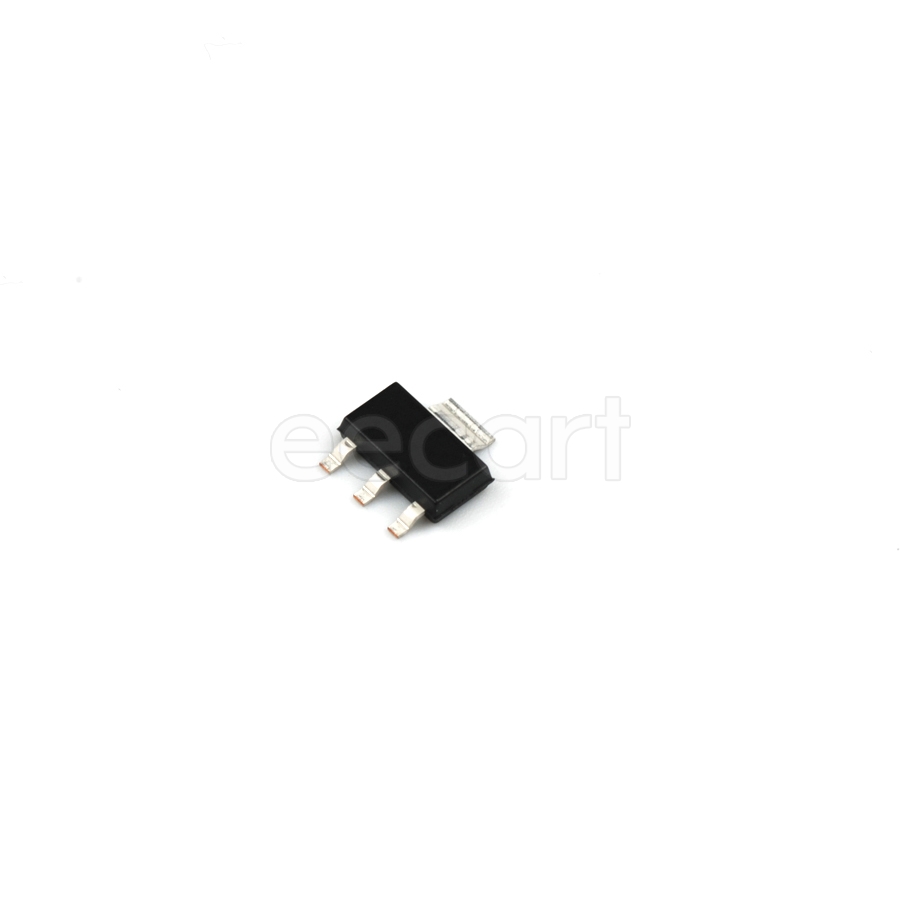

Power Switch ICs - Power Distribution PG-SOT223-4 SMD/SMT Turn-On Delay Time:100 µs Turn-Off Delay Time:175 µs 1 Ω
| Parameter | Value |
|---|---|
| Length | 6.5 mm |
| Width | 3.5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Resistance | 1 Ω |
| Height | 1.6 mm |
| Packaging | Reel |
| Halogen Free | Not Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 60 V |
| REACH SVHC | No SVHC |
| Type | High Side |
| Current | 200 mA |
| Interface | On/Off |
| Output Current | 200 mA |
| Operating Supply Voltage | 4.9 V to 60 V |
| Output Type | N-Channel |
| Max Power Dissipation | 1.7 W |
| Max Supply Voltage | 60 V |
| Min Supply Voltage | 4.9 V |
| Power Dissipation | 1.7 W |
| Max Output Current | 900 mA |
| Mounting Style | Surface Mount |
| lead free status | Lead Free |
| Number of Channels | 1 |
| operating temperature | -40.0 °C |
| pin count | 4 |
| rohs status | Compliant |
| supply voltage dc | 4.50 V (min), 60.0 V (max) |
| reach svhc compliance | No SVHC |
| Turn-On Delay Time | 100 µs |
| Turn-Off Delay Time | 175 µs |
| Number of Outputs | 1 |
| Output Current per Channel | 200 mA |
| input voltage dc | 62 V |
| Nominal Input Voltage | 62 V |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Schedule B | 8542390000 |
| Package Quantity | 4000 |
| On Resistance (RON) | 1 Ω |
| Ratio - Input:Output | 1:1 |
| Current Limit | 700 mA |
Stock: 25093
Distributors
pcbx
pcbxUnit Price$0.90708
Ext.Price$0.90708
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.90708 | $0.90708 |
| 10 | $0.66343 | $6.63430 |
| 25 | $0.60016 | $15.00400 |
| 50 | $0.56538 | $28.26900 |
| 100 | $0.53262 | $53.26200 |
| 300 | $0.50587 | $151.76100 |
| 500 | $0.48047 | $240.23500 |
| 1000 | $0.46508 | $465.08000 |
| 3000 | $0.44498 | $1334.94000 |
| 5000 | $0.42576 | $2128.80000 |
