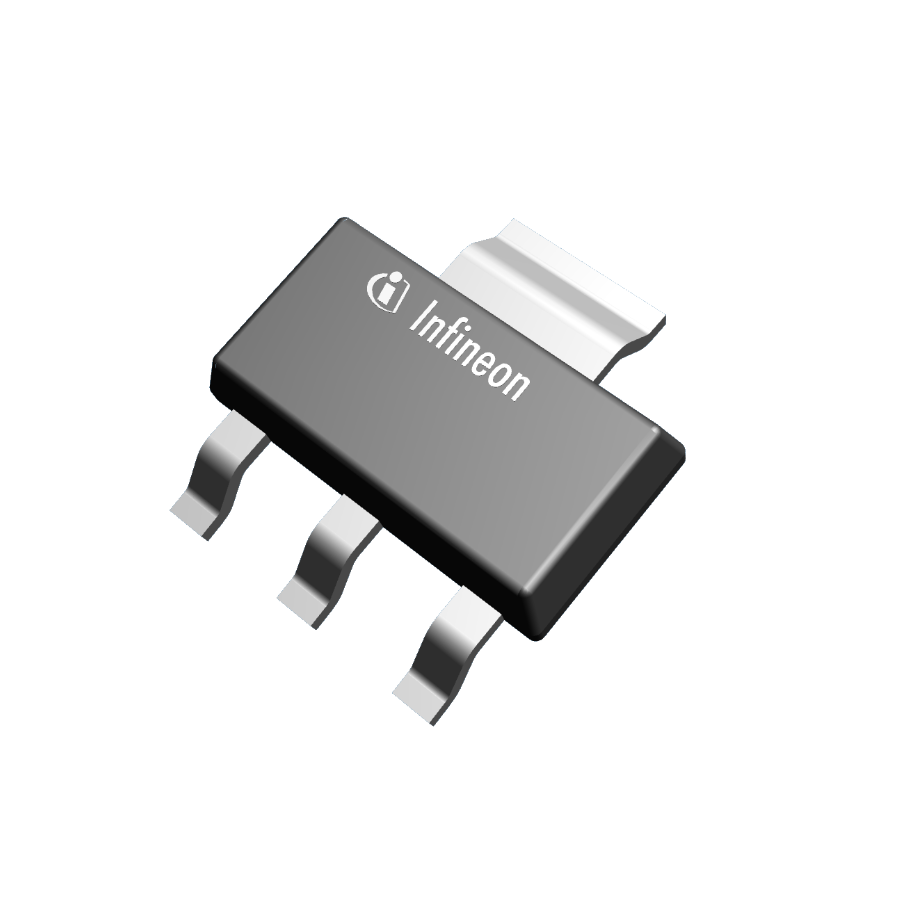

BTS4142N
Manufacturer:
Infineon
Mfr.Part #:
BTS4142N
Datasheet:
Description:
Power Switch ICs - Power Distribution SOT-223-3 SMD/SMT Turn-On Delay Time:100 µs Turn-Off Delay Time:150 µs 200 mΩ
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Packaging | Reel |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | High Side |
| Interface | On/Off |
| Output Current | 1.4 A |
| Operating Supply Voltage | 12 V to 45 V |
| Output Type | N-Channel |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Power Dissipation | 1.4 W |
| Max Supply Voltage | 45 V |
| Power Dissipation | 1.4 W |
| Number of Channels | 1 |
| Turn-On Delay Time | 100 µs |
| Turn-Off Delay Time | 150 µs |
| Number of Outputs | 1 |
| Nominal Supply Current | 1 mA |
| Nominal Input Voltage | 48 V |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Schedule B | 8542390000 |
| Package Quantity | 4000 |
| On Resistance (RON) | 200 mΩ |
| Ratio - Input:Output | 1:1 |
| Current Limit | 3 A |
Stock: 420
Distributors
pcbx
pcbxUnit Price$2.35891
Ext.Price$2.35891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.35891 | $2.35891 |
| 10 | $2.00698 | $20.06980 |
| 25 | $1.85207 | $46.30175 |
| 50 | $1.70912 | $85.45600 |
| 100 | $1.57722 | $157.72200 |
| 300 | $1.52505 | $457.51500 |
| 500 | $1.47459 | $737.29500 |
| 1000 | $1.43007 | $1430.07000 |
