BTS500801TMBAKSA1
Manufacturer:
Infineon
Mfr.Part #:
BTS500801TMBAKSA1
Datasheet:
Description:

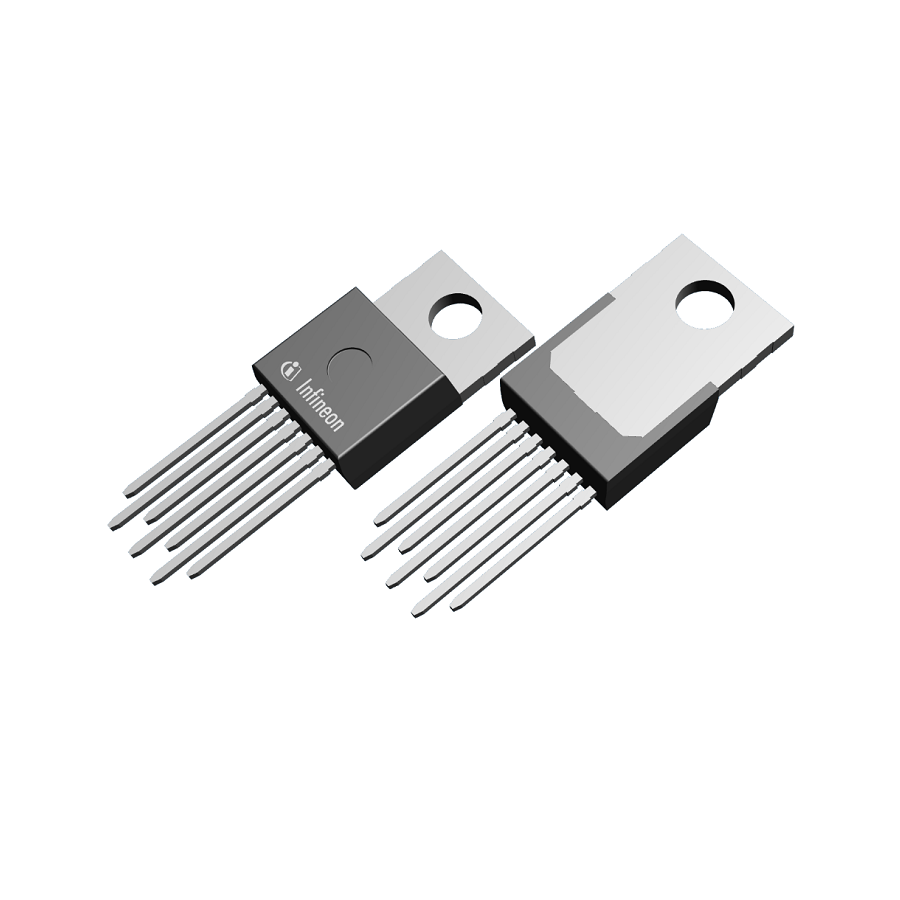

Power Switch ICs - Power Distribution TO-220-7 Through Hole 7 mΩ
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 7 |
| Packaging | Tube |
| Halogen Free | Halogen Free |
| RoHS | Compliant |
| Type | High Side |
| Interface | On/Off |
| Output Current | 9.5 A |
| Operating Supply Voltage | 5.5 V to 30 V |
| Output Type | N-Channel |
| Max Supply Voltage | 38 V |
| Power Dissipation | 81 W |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Nominal Supply Current | 1.4 mA |
| Nominal Input Voltage | 38 V |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Schedule B | 8542390000 |
| Package Quantity | 500 |
| On Resistance (RON) | 7 mΩ |
| Ratio - Input:Output | 1:1 |
| Current Limit | 37.5 A |
Stock: 116
Distributors
pcbx
pcbxUnit Price$3.00423
Ext.Price$3.00423
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.00423 | $3.00423 |
| 10 | $2.29036 | $22.90360 |
| 25 | $2.00224 | $50.05600 |
| 50 | $2.00074 | $100.03700 |
| 100 | $1.99924 | $199.92400 |
| 300 | $1.99774 | $599.32200 |
| 500 | $1.99626 | $998.13000 |
| 1000 | $1.68336 | $1683.36000 |
