BTS500851TMBAKSA1
Manufacturer:
Infineon
Mfr.Part #:
BTS500851TMBAKSA1
Datasheet:
Description:

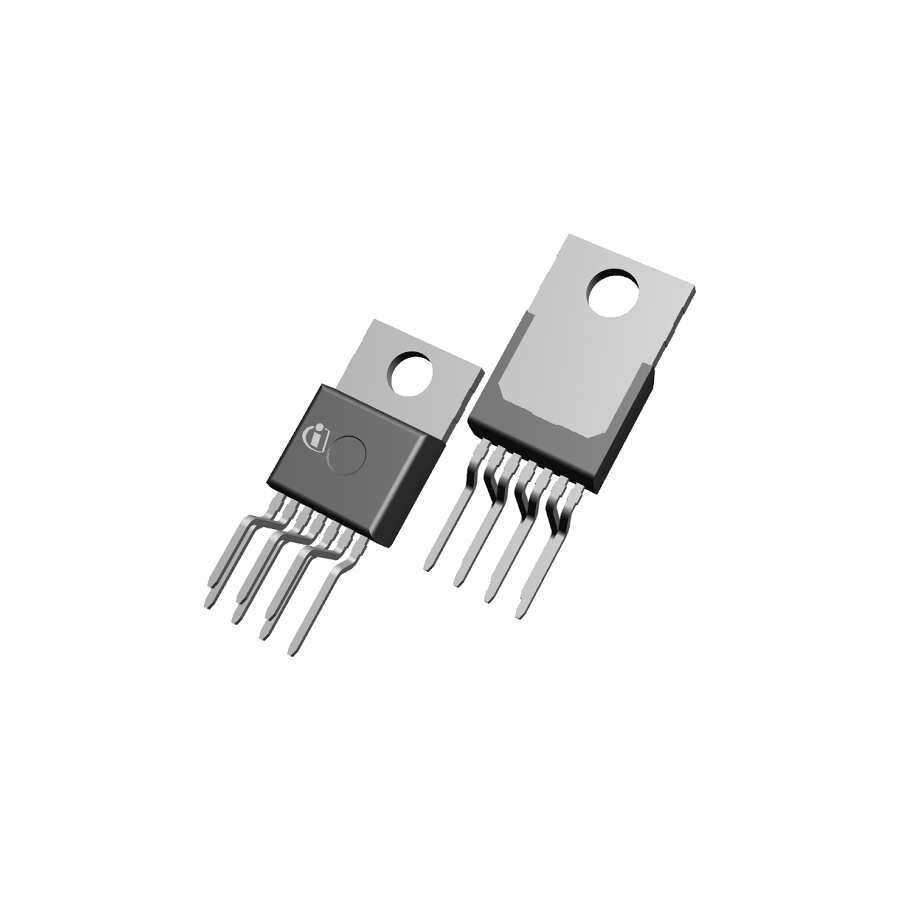

Power Switch ICs - Power Distribution TO-220-7 Through Hole 9 mΩ
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 9.25 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 7 |
| Resistance | 7.2 mΩ |
| Height | 4.4 mm |
| Packaging | Tube |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 58 V |
| REACH SVHC | No SVHC |
| Type | High Side |
| Current | 44 A |
| Interface | On/Off |
| Min Input Voltage | 5 V |
| Output Current | 9.9 A |
| Operating Supply Voltage | 58 V |
| Output Type | N-Channel |
| Max Power Dissipation | 170 W |
| Max Supply Voltage | 58 V |
| Min Supply Voltage | 5 V |
| Power Dissipation | 170 W |
| Max Output Current | 90 A |
| Number of Channels | 1 |
| Max Supply Current | 800 µA |
| Max Input Voltage | 58 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 800 µA |
| Output Current per Channel | 44 A |
| Nominal Input Voltage | 58 V |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Schedule B | 8542390000 |
| Package Quantity | 500 |
| On Resistance (RON) | 9 mΩ |
| Ratio - Input:Output | 1:1 |
| Current Limit | 90 A |
Stock: 3903
Distributors
pcbx
pcbxUnit Price$5.01245
Ext.Price$5.01245
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.01245 | $5.01245 |
| 10 | $4.08656 | $40.86560 |
| 25 | $3.69244 | $92.31100 |
| 50 | $3.53252 | $176.62600 |
| 100 | $3.37954 | $337.95400 |
| 300 | $3.01923 | $905.76900 |
| 500 | $2.69730 | $1348.65000 |
| 1000 | $2.50323 | $2503.23000 |
