BUK7K89-100EX
Manufacturer:
Nexperia
Mfr.Part #:
BUK7K89-100EX
Datasheet:
Description:

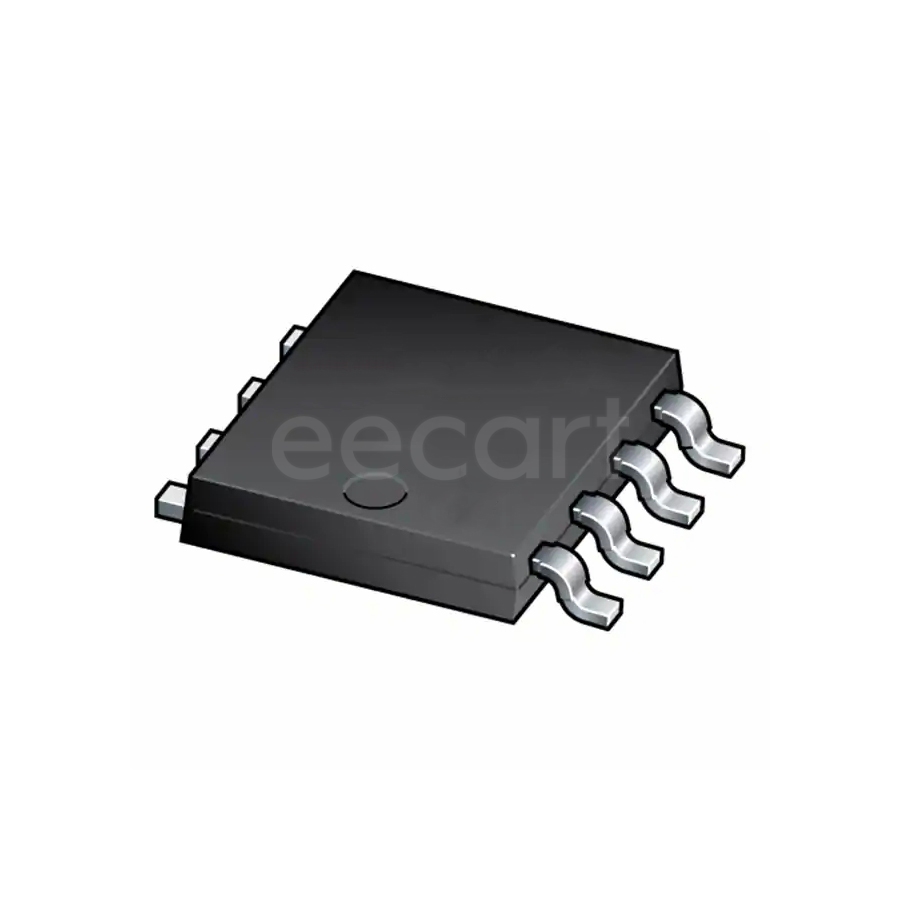

MOSFETs LFPAK56D-8 SMD/SMT N-Channel number of channels:2 38 W 100 V Continuous Drain Current (ID):13 A 13.6 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 38 W |
| Number of Channels | 2 |
| Input capacitance | 811 pF |
| Continuous Drain Current (ID) | 13 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 13.6 nC |
| Drain to Source Resistance | 61 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 100 V |
| Gate to Source Threshold Voltage | 2.4 V |
Stock: 447
Distributors
pcbx
pcbxUnit Price$0.93273
Ext.Price$0.93273
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.93273 | $0.93273 |
| 10 | $0.53347 | $5.33470 |
| 25 | $0.48016 | $12.00400 |
| 50 | $0.43218 | $21.60900 |
| 100 | $0.38900 | $38.90000 |
| 300 | $0.34553 | $103.65900 |
| 500 | $0.30692 | $153.46000 |
| 1000 | $0.30264 | $302.64000 |
