BZT55C5V6-GS08
Manufacturer:
Vishay
Mfr.Part #:
BZT55C5V6-GS08
Datasheet:
Description:

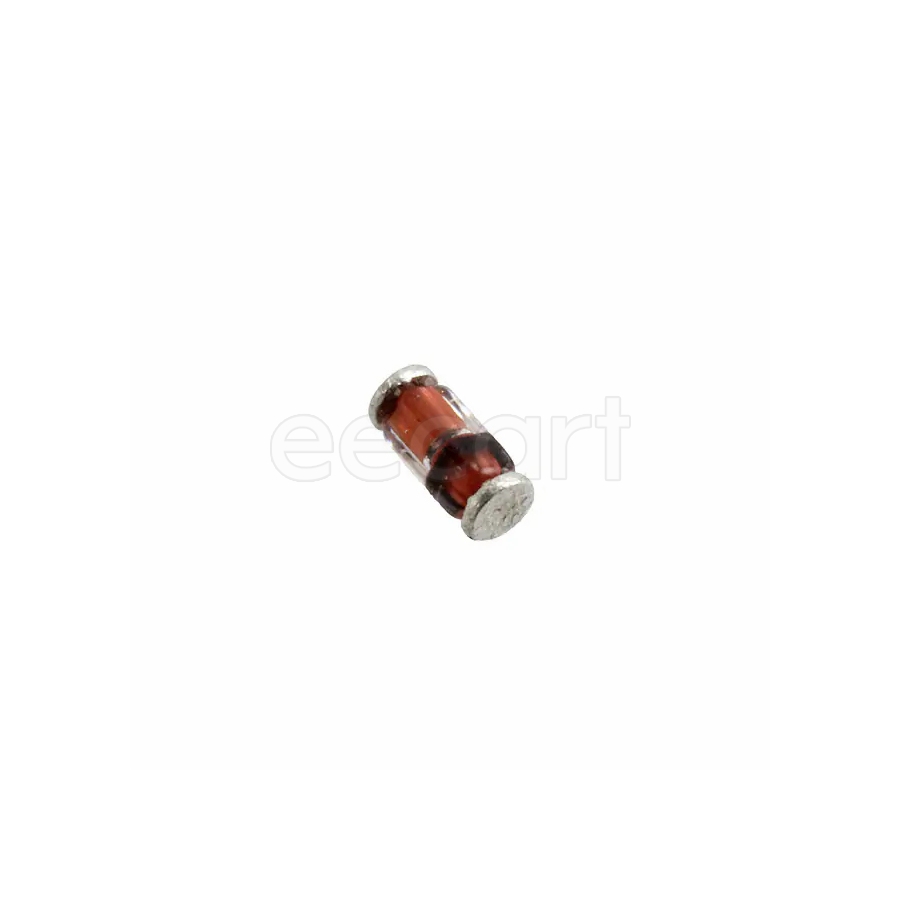

Zener Diodes SOD-80 QuadroMELF SMD/SMT Single Zener Voltage:5.6 V 5 % 500 mW
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Length | 3.7 mm |
| Termination | SMD/SMT |
| Diameter | 1.6 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Silver |
| Impedance | 40 Ω |
| Working Voltage | 5.6 V |
| Forward Voltage | 1.5 V |
| Max Power Dissipation | 500 mW |
| Power Dissipation | 500 mW |
| Max Reverse Leakage Current | 100 nA |
| Zener Voltage | 5.6 V |
| Element Configuration | Single |
| ESD Protection | No |
| Test Current | 5 mA |
| Voltage Tolerance | 5 % |
| Schedule B | 8541100050 |
| Voltage Temperature Coefficient | 0.05 %/K |
Stock: 57
Distributors
pcbx
pcbxUnit Price$0.08139
Ext.Price$0.08139
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08139 | $0.08139 |
| 10 | $0.05198 | $0.51980 |
| 50 | $0.03741 | $1.87050 |
| 100 | $0.02693 | $2.69300 |
| 500 | $0.02521 | $12.60500 |
| 1000 | $0.02360 | $23.60000 |
| 3000 | $0.02209 | $66.27000 |
| 5000 | $0.02069 | $103.45000 |
| 10000 | $0.01317 | $131.70000 |
