BZX84-A18,215
Manufacturer:
Nexperia
Mfr.Part #:
BZX84-A18,215
Datasheet:
Description:

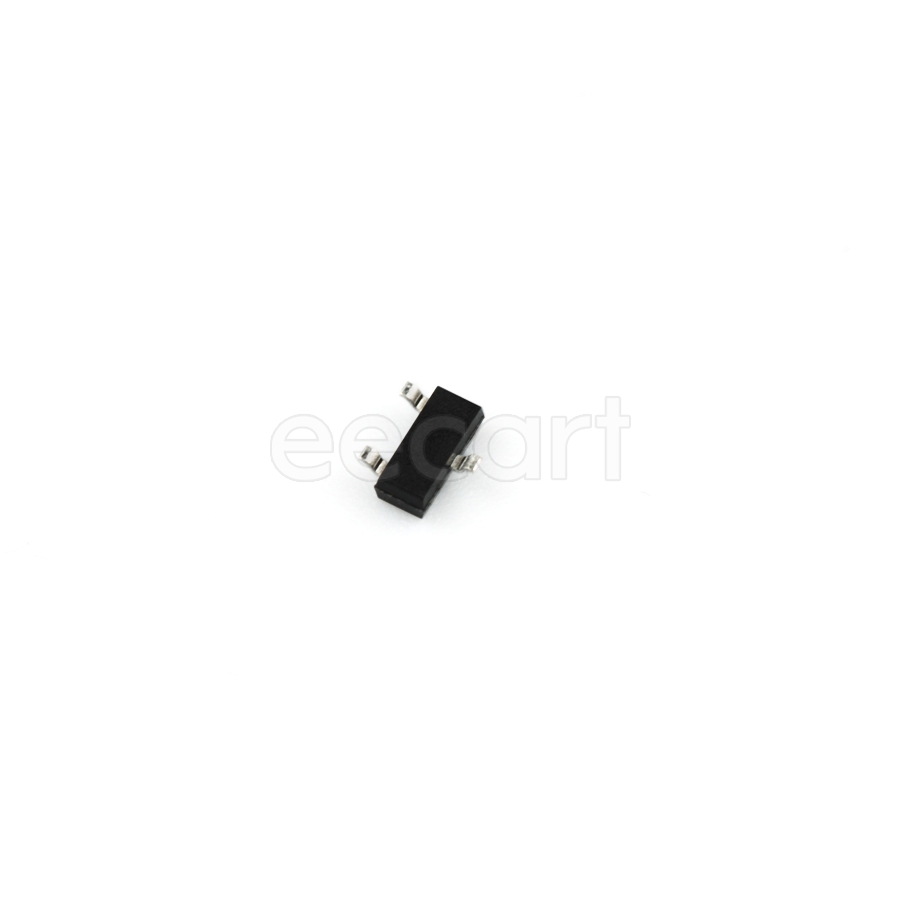

Zener Diodes TO-236AB SMD/SMT Single Zener Voltage:18 V 1 % 250 mW
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Impedance | 45 Ω |
| Max Power Dissipation | 250 mW |
| Power Dissipation | 250 mW |
| Max Reverse Leakage Current | 50 nA |
| Zener Voltage | 18 V |
| Element Configuration | Single |
| ESD Protection | No |
| Test Current | 5 mA |
| Voltage Tolerance | 1 % |
| Voltage Temperature Coefficient | 16 mV/K |
| Forward Voltage | 900 mV |
| Forward Current | 10 mA |
Stock: 1994
Distributors
pcbx
pcbxUnit Price$0.30008
Ext.Price$0.30008
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30008 | $0.30008 |
| 10 | $0.20433 | $2.04330 |
| 50 | $0.16875 | $8.43750 |
| 100 | $0.13936 | $13.93600 |
| 500 | $0.11456 | $57.28000 |
| 1000 | $0.09746 | $97.46000 |
| 3000 | $0.07883 | $236.49000 |
| 5000 | $0.07130 | $356.50000 |
