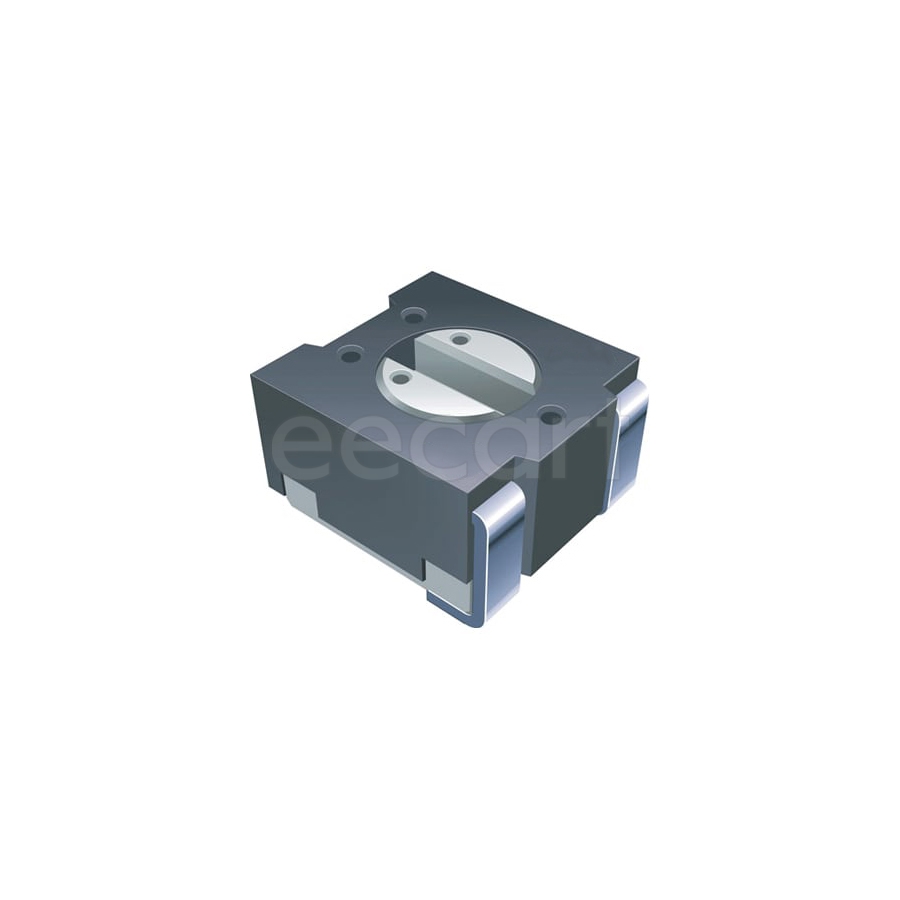

7813J-1-023E
Manufacturer:
Bourns
Mfr.Part #:
7813J-1-023E
Datasheet:
Description:
Rotary Switches SMD/SMT Adjustable Index Angle:245 ° Number of Positions:2 Number of Decks:1 Current Rating:100 mA Rotary for Tool
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 16 V |
| Length | 3.2 mm |
| Width | 3.5 mm |
| Termination | J-Bend |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Height | 2.4 mm |
| Packaging | Reel |
| Depth | 3.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 16 V |
| Orientation | Straight |
| Color | Grey |
| Actuator Length | 0 m |
| Number of Poles | 1 |
| Throw Configuration | SPDT |
| Number of Positions | 2 |
| Contact Style | Non-Shorting |
| Contact Resistance | 2 Ω |
| Max Voltage Rating (AC) | 16 V |
| Illumination Type | Non-Illuminated |
| Mechanical Life | 2 kcycles |
| Number of Poles per Deck | 1 |
| Number of Decks | 1 |
| Contact Current Rating | 100 mA |
| Actuator Type | Rotary for Tool |
| Termination Style | J Lead |
| Washable | No |
| Life (Cycles) | 2 kCycles |
| Index Angle | 245 ° |
| Index Stops | Adjustable |
Stock: 1819
Distributors
pcbx
pcbxUnit Price$1.13260
Ext.Price$1.13260
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.13260 | $1.13260 |
| 10 | $0.95540 | $9.55400 |
| 25 | $0.88698 | $22.17450 |
| 50 | $0.83716 | $41.85800 |
| 100 | $0.79013 | $79.01300 |
| 300 | $0.74006 | $222.01800 |
| 500 | $0.69316 | $346.58000 |
| 1000 | $0.65736 | $657.36000 |
