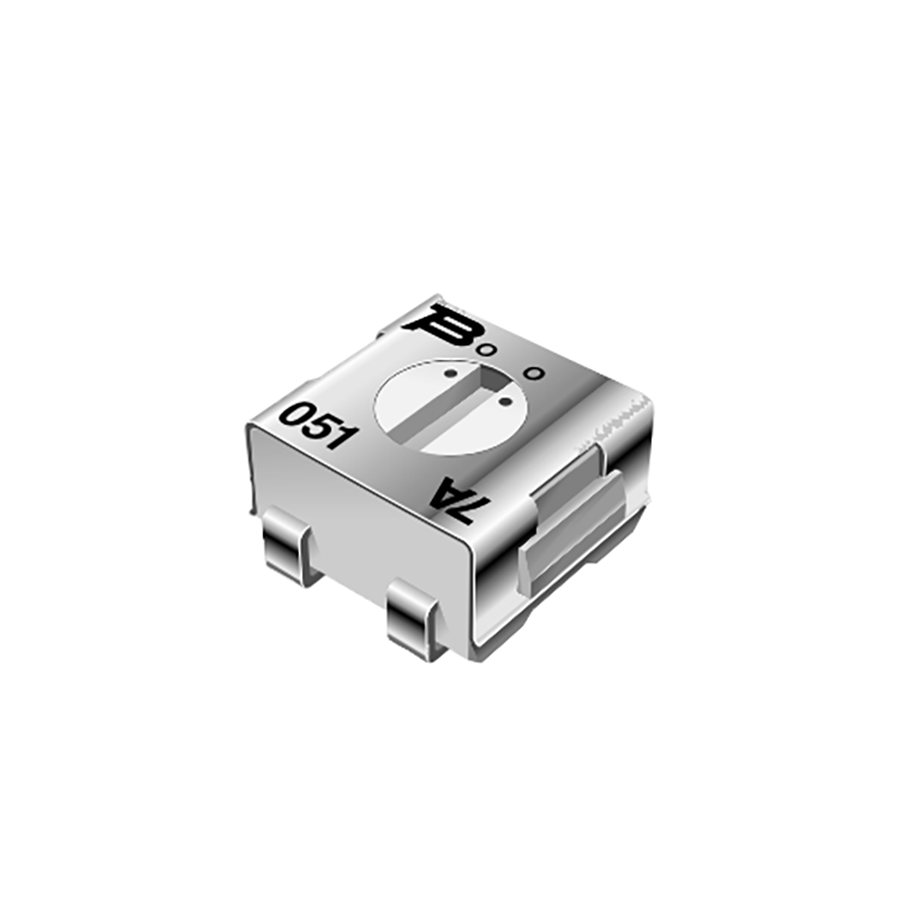

7814J-1-051E
Manufacturer:
Bourns
Mfr.Part #:
7814J-1-051E
Datasheet:
Description:
Rotary Switches SMD/SMT Number of Positions:2 Number of Decks:1 Current Rating:100 mA Rotary for Tool
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 16 V |
| Length | 4.4958 mm |
| Termination | J-Bend |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Height | 2.55 mm |
| Packaging | Reel |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Weight | 200 mg |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 16 V |
| Orientation | Straight |
| Actuator Length | 0 m |
| Throw Configuration | SPDT |
| Number of Positions | 2 |
| Contact Style | Non-Shorting |
| Contact Resistance | 2 Ω |
| Max Voltage Rating (AC) | 16 V |
| Illumination Type | Non-Illuminated |
| Mechanical Life | 50 cycles |
| Number of Poles per Deck | 1 |
| Number of Decks | 1 |
| Contact Current Rating | 100 mA |
| Actuator Type | Rotary for Tool |
| Termination Style | J Lead |
| Washable | No |
| Life (Cycles) | 50 cycles |
| Schedule B | 8536509065 |
Stock: 39
Distributors
pcbx
pcbxUnit Price$1.03273
Ext.Price$1.03273
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.03273 | $1.03273 |
| 10 | $0.87475 | $8.74750 |
| 25 | $0.81214 | $20.30350 |
| 50 | $0.76650 | $38.32500 |
| 100 | $0.72343 | $72.34300 |
| 300 | $0.67746 | $203.23800 |
| 500 | $0.63442 | $317.21000 |
