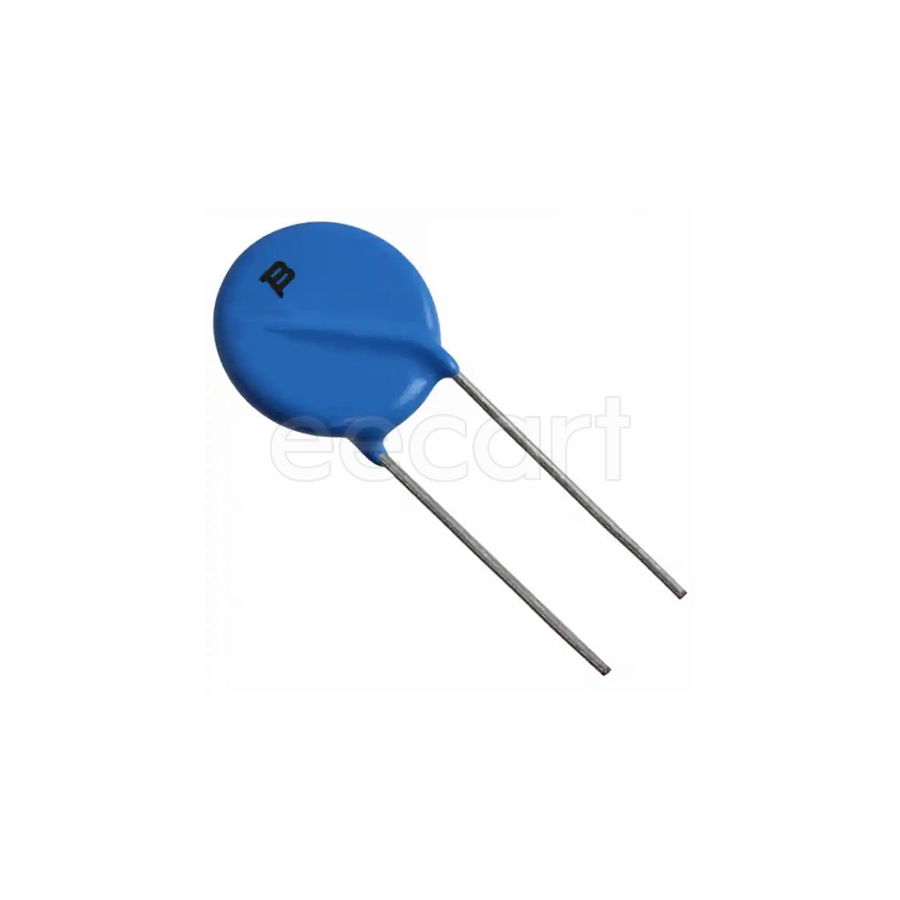

MOV-07D241KTR
Manufacturer:
Bourns
Mfr.Part #:
MOV-07D241KTR
Datasheet:
Description:
Varistors 9.00mmL×3.60mmW×11.00mmH Through Hole 210 pF 15 J Voltage Rating (AC):150 V Voltage Rating (DC):264 V
| Parameter | Value |
|---|---|
| Capacitance | 210 pF |
| Voltage Rating (DC) | 264 V |
| Tolerance | 10 % |
| Width | 6.8 mm |
| Diameter | 7 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 150 V |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Max Voltage Rating (DC) | 200 V |
| Number of Circuits | 1 |
| Clamping Voltage | 395 V |
| Varistor Voltage | 240 V |
| Max Voltage Rating (AC) | 150 V |
| Max Surge Current | 1.2 kA |
| Energy | 15 J |
| Clamping Current | 10 A |
| Max Varistor Voltage | 264 V |
| Min Varistor Voltage | 216 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 15 J |
| Peak Surge Current | 1.2 kA |
Stock: 2602
Distributors
pcbx
pcbxUnit Price$0.19663
Ext.Price$0.19663
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19663 | $0.19663 |
| 10 | $0.10601 | $1.06010 |
| 50 | $0.09142 | $4.57100 |
| 100 | $0.07883 | $7.88300 |
| 500 | $0.05728 | $28.64000 |
| 1000 | $0.05044 | $50.44000 |
| 3000 | $0.04333 | $129.99000 |
| 5000 | $0.03722 | $186.10000 |
| 10000 | $0.03198 | $319.80000 |
