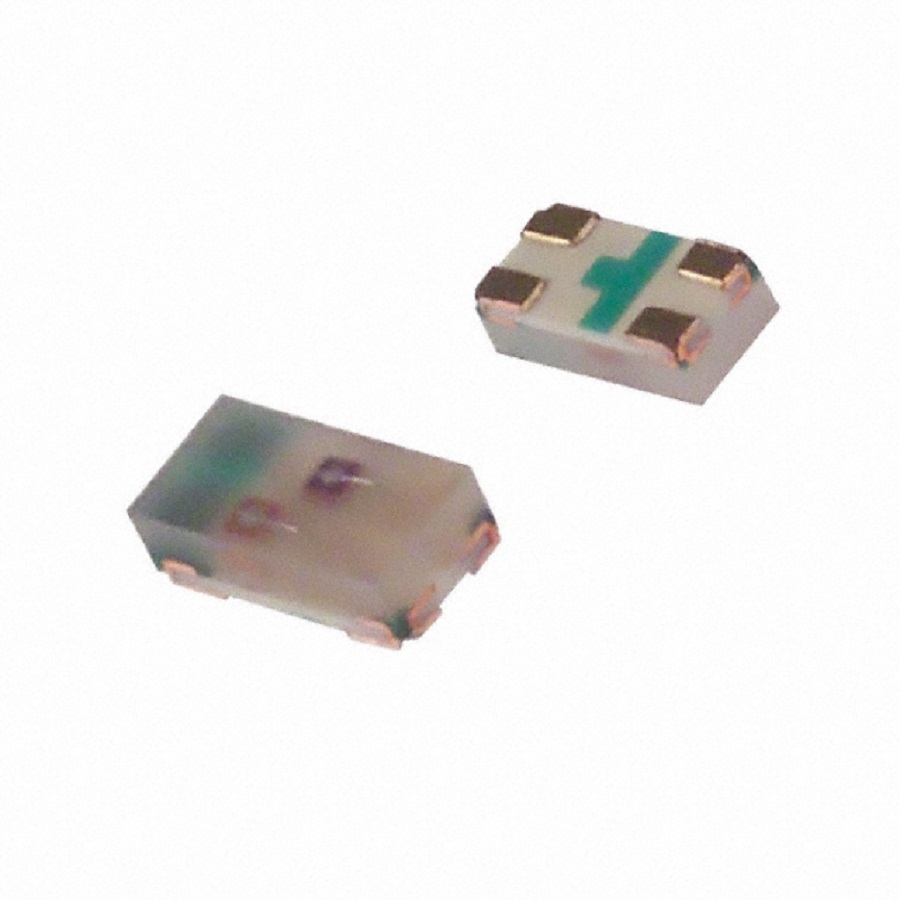

HSMF-C165
Manufacturer:
Broadcom
Mfr.Part #:
HSMF-C165
Datasheet:
Description:
LEDs 0603(1608 Metric) SMD/SMT Green, Red 621 nm 20 mA 2.2 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 800 µm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Number of Pins | 4 |
| Power Rating | 52 mW |
| Height | 500 µm |
| Packaging | Reel |
| Depth | 800 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Terminals | 4 |
| Number of Elements | 2 |
| Forward Current | 20 mA |
| Forward Voltage | 2.2 V |
| Color | Green, Red |
| Illumination Color | Green, Red |
| Lens Style | Diffused |
| Luminous Intensity | 10 mcd |
| Power Dissipation | 52 mW |
| Number of LEDs | 2 |
| Viewing Angle | 120 ° |
| Wavelength | 572 nm |
| Lens Transparency | Diffused |
| Lens Color | Clear, White |
| Shape | Rectangular |
| Peak Wavelength | 570 nm |
| Dominant Wavelength/CCT (K) | 621 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Max Junction Temperature (Tj) | 95 °C |
Stock: 399
Distributors
pcbx
pcbxUnit Price$0.55766
Ext.Price$0.55766
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55766 | $0.55766 |
| 10 | $0.45341 | $4.53410 |
| 25 | $0.41642 | $10.41050 |
| 50 | $0.38245 | $19.12250 |
| 100 | $0.35124 | $35.12400 |
| 300 | $0.33557 | $100.67100 |
| 500 | $0.32059 | $160.29500 |
| 1000 | $0.30293 | $302.93000 |
