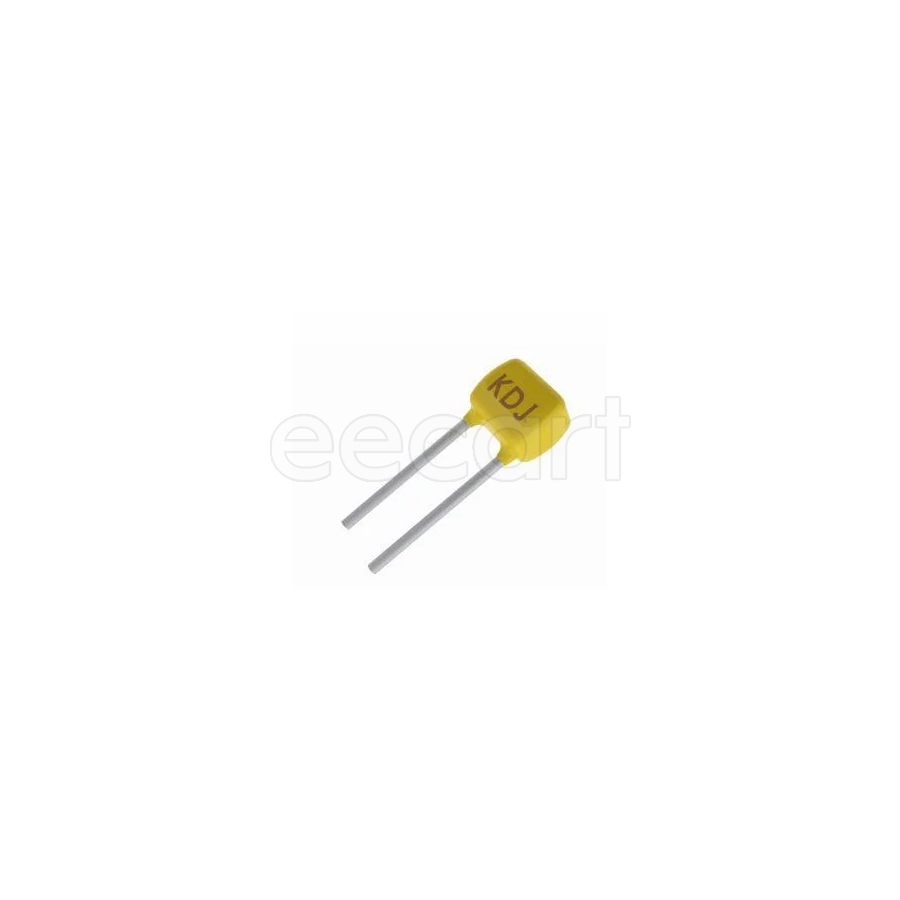

C315C100J2G5TA
Manufacturer:
KEMET
Mfr.Part #:
C315C100J2G5TA
Datasheet:
Description:
Ceramic Capacitors 5.33mmL×3.81mmW×2.54mmH Through Hole 10 pF 5 % 200 V
| Parameter | Value |
|---|---|
| Capacitance | 10 pF |
| Voltage Rating (DC) | 200 V |
| Tolerance | 5 % |
| Height - Seated (Max) | 5.33 mm |
| Length | 3.81 mm |
| Width | 3.81 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | C0G |
| Number of Pins | 2 |
| Dissipation Factor | 0.1 % |
| Temperature Coefficient | 30 ppm/°C |
| Height | 2.54 mm |
| Packaging | Reel |
| Voltage Rating | 200 V |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 510 µm |
| Lead Pitch | 2.54 mm |
| Voltage | 200 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Ceramic |
| Lead Length | 7 mm |
| Lead/Base Style | Straight |
| Output Current | 30 mA |
| Bandwidth | 700 kHz |
| Max Supply Voltage | 16 V |
| Min Supply Voltage | 1.5 V |
| Nominal Supply Voltage (DC) | 5 V |
| Nominal Supply Current | 1.2 mA |
| Schedule B | 8532240060 |
Stock: 2029
Distributors
pcbx
pcbxUnit Price$0.21287
Ext.Price$0.21287
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21287 | $0.21287 |
| 10 | $0.09917 | $0.99170 |
| 50 | $0.09120 | $4.56000 |
| 100 | $0.08387 | $8.38700 |
| 500 | $0.06386 | $31.93000 |
| 1000 | $0.05754 | $57.54000 |
| 3000 | $0.05567 | $167.01000 |
| 5000 | $0.05386 | $269.30000 |
