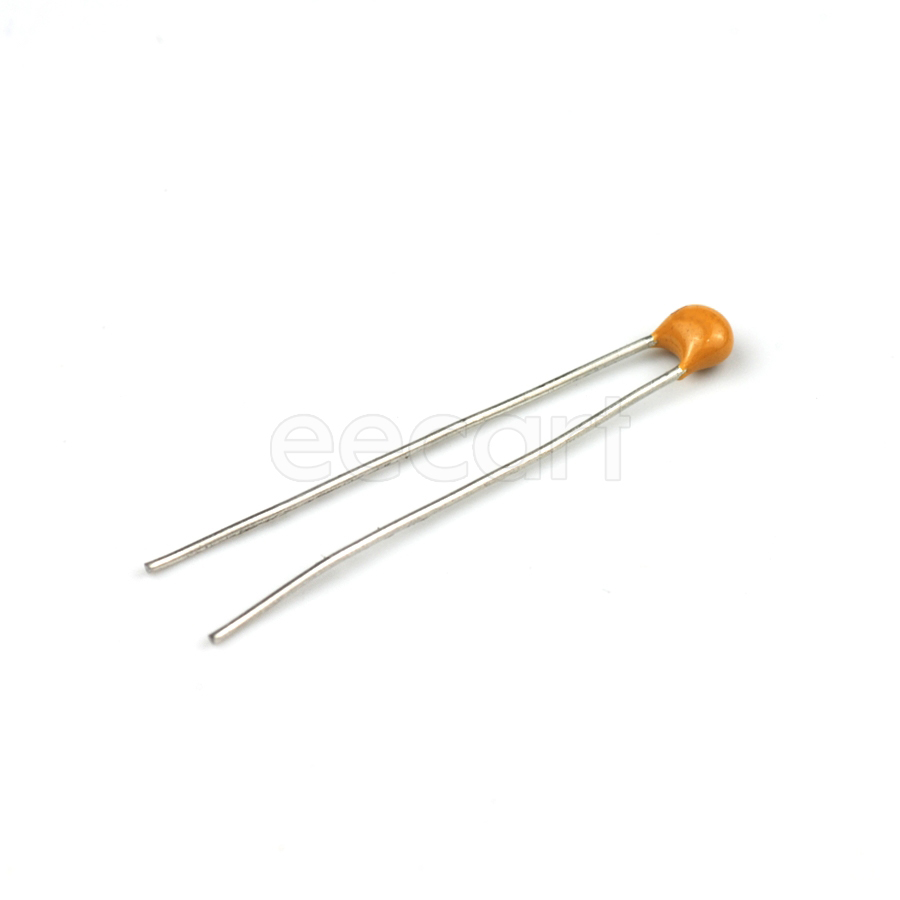

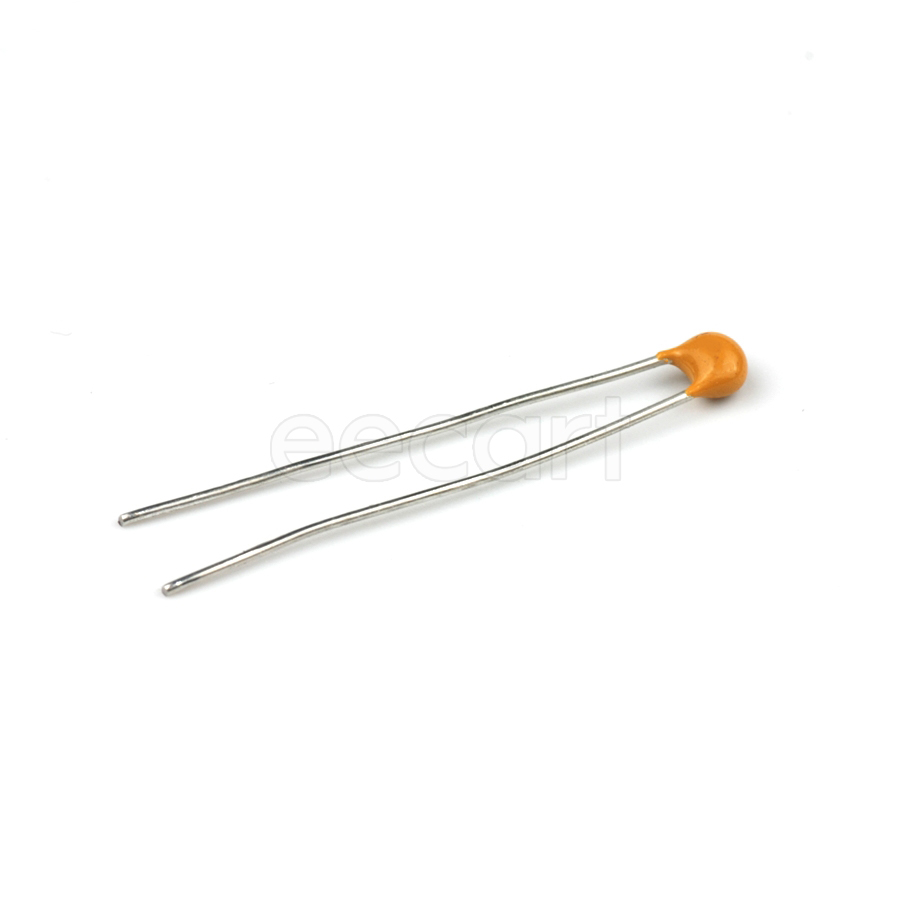

C320C104M5R5TA
Manufacturer:
KEMET
Mfr.Part #:
C320C104M5R5TA
Datasheet:
Description:
Ceramic Capacitors 5.08mmL×3.18mmW×5.84mmH Through Hole 100 nF 20 % 50 V
| Parameter | Value |
|---|---|
| Capacitance | 100 nF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 20 % |
| Height - Seated (Max) | 7.36 mm |
| Length | 5.08 mm |
| Width | 3.175 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | X7R |
| Number of Pins | 320 |
| Dissipation Factor | 2.5 % |
| Height | 3.18 mm |
| Voltage Rating | 50 V |
| Depth | 3.18 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 510 µm |
| Lead Pitch | 2.54 mm |
| Voltage | 50 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Ceramic |
| Lead/Base Style | Straight |
| Schedule B | 8532240060 |
| Packaging | Bulk |
Stock: 1961
Distributors
pcbx
pcbxUnit Price$0.13166
Ext.Price$0.13166
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13166 | $0.13166 |
| 10 | $0.07259 | $0.72590 |
| 50 | $0.06708 | $3.35400 |
| 100 | $0.06198 | $6.19800 |
| 500 | $0.05070 | $25.35000 |
| 1000 | $0.04806 | $48.06000 |
| 3000 | $0.04556 | $136.68000 |
| 5000 | $0.04318 | $215.90000 |
