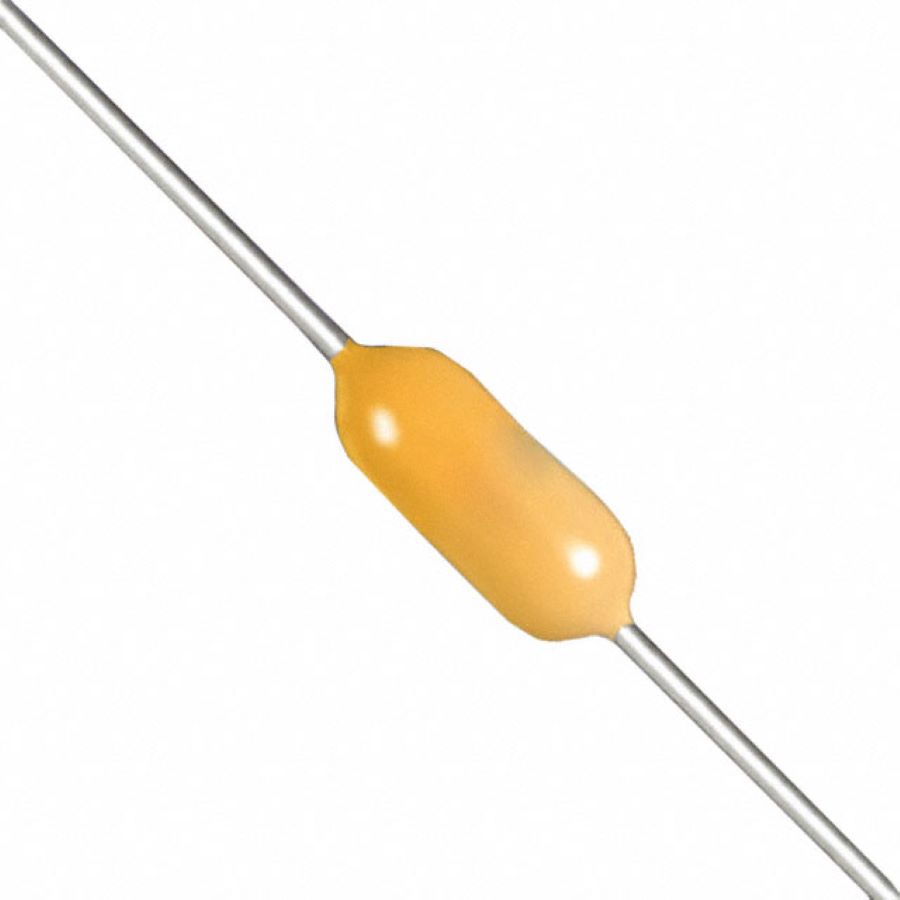

C410C105K3R5TA
Manufacturer:
KEMET
Mfr.Part #:
C410C105K3R5TA
Datasheet:
Description:
Ceramic Capacitors Axial Through Hole 1 µF 10 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 1 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 10 % |
| Length | 4.32 mm |
| Termination | Axial |
| Diameter | 2.54 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | X7R |
| Dissipation Factor | 2.5 % |
| Temperature Coefficient | 2.2 ppm/°C |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 510 µm |
| Voltage | 25 V |
| Dielectric Material | Ceramic |
| Contact Plating | Tin |
| Schedule B | 8532240040 |
Stock: 2039
Distributors
pcbx
pcbxUnit Price$0.49415
Ext.Price$0.49415
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.49415 | $0.49415 |
| 10 | $0.14363 | $1.43630 |
| 50 | $0.11191 | $5.59550 |
| 100 | $0.08720 | $8.72000 |
| 500 | $0.08664 | $43.32000 |
| 1000 | $0.08609 | $86.09000 |
| 3000 | $0.08554 | $256.62000 |
| 5000 | $0.08500 | $425.00000 |
| 10000 | $0.08446 | $844.60000 |
