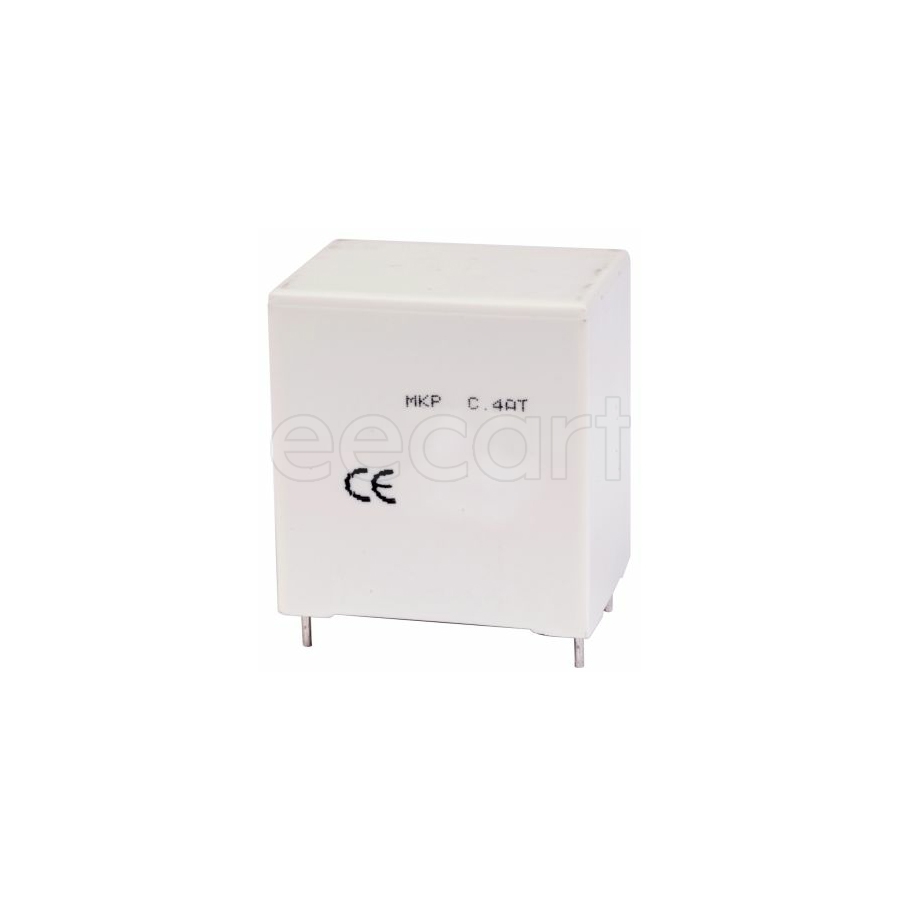

C4ATGBW5100A3FJ
Manufacturer:
KEMET
Mfr.Part #:
C4ATGBW5100A3FJ
Datasheet:
Description:
Film Capacitors Through Hole 10 µF 5 % Polypropylene (PP) Voltage Rating (DC):450 V Voltage Rating (AC):275 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 450 V |
| Tolerance | 5 % |
| ESR (Equivalent Series Resistance) | 2.1 mΩ |
| Height - Seated (Max) | 40 mm |
| Length | 41.5 mm |
| Width | 19.9898 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 275 V |
| Dissipation Factor | 5 % |
| Height | 40 mm |
| Packaging | Bulk |
| Voltage Rating | 450 V |
| Depth | 20 mm |
| RoHS | Compliant |
| Lead Diameter | 1.2 mm |
| Lead Pitch | 37.5 mm |
| Dielectric Material | PP |
| Current Rating | 552 A |
| Schedule B | 8532250010 |
| Number of Pins | 4 |
Stock: 57
Distributors
pcbx
pcbxUnit Price$6.68207
Ext.Price$6.68207
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.68207 | $6.68207 |
| 10 | $5.10007 | $51.00070 |
| 25 | $4.86281 | $121.57025 |
| 50 | $4.63659 | $231.82950 |
| 100 | $4.42089 | $442.08900 |
| 300 | $4.21523 | $1264.56900 |
| 500 | $4.01914 | $2009.57000 |
| 1000 | $3.83225 | $3832.25000 |
