C503B-BCN-CV0Z0461
Manufacturer:
Wolfspeed
Mfr.Part #:
C503B-BCN-CV0Z0461
Datasheet:
Description:

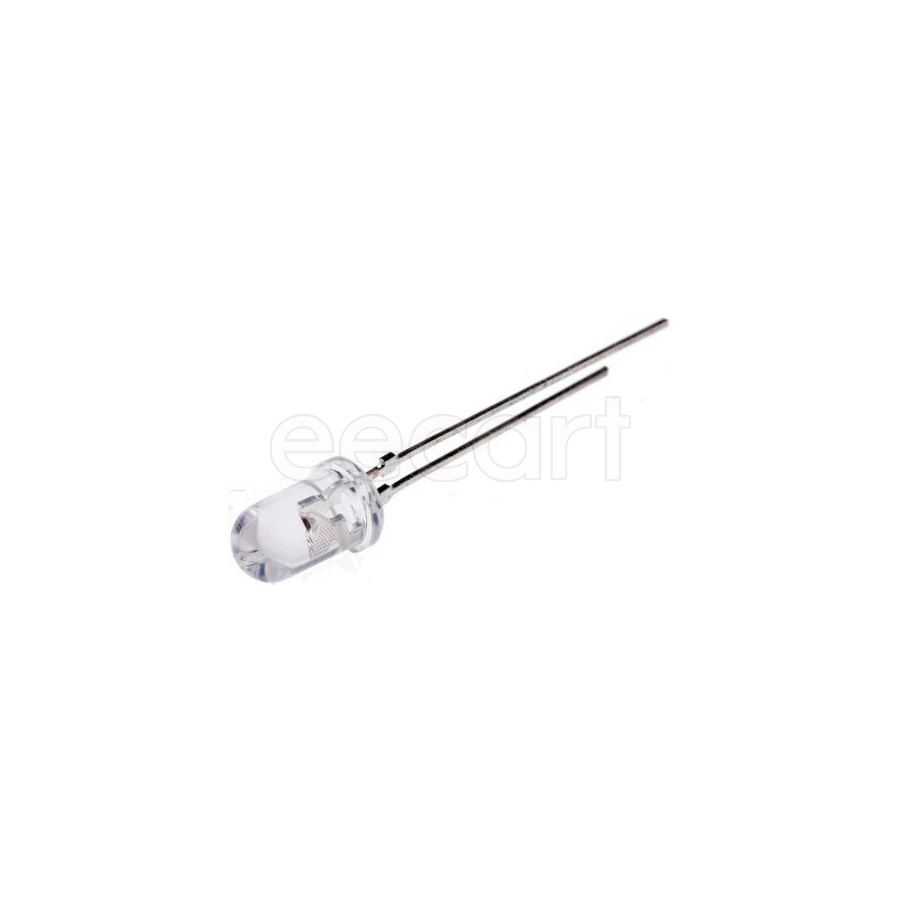

LEDs 5.00mD×8.80mmH Through Hole Blue 470 nm 30 mA 3.2 V
| Parameter | Value |
|---|---|
| Length | 5.8 mm |
| Width | 12.7 mm |
| Max Operating Temperature | 95 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 8.6 mm |
| Packaging | Bulk |
| Depth | 5.8 mm |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Weight | 4.535924 g |
| Number of Elements | 1 |
| Forward Current | 30 mA |
| Forward Voltage | 3.2 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Color | Blue |
| Illumination Color | Blue |
| Lens Style | Dome, Round |
| Luminous Intensity | 7.065 cd |
| Power Dissipation | 120 mW |
| Number of LEDs | 1 |
| Viewing Angle | 30 ° |
| Wavelength | 480 nm |
| Lens Transparency | Clear |
| Lens Color | Clear, Colorless |
| Dominant Wavelength/CCT (K) | 470 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| RoHS | Compliant |
