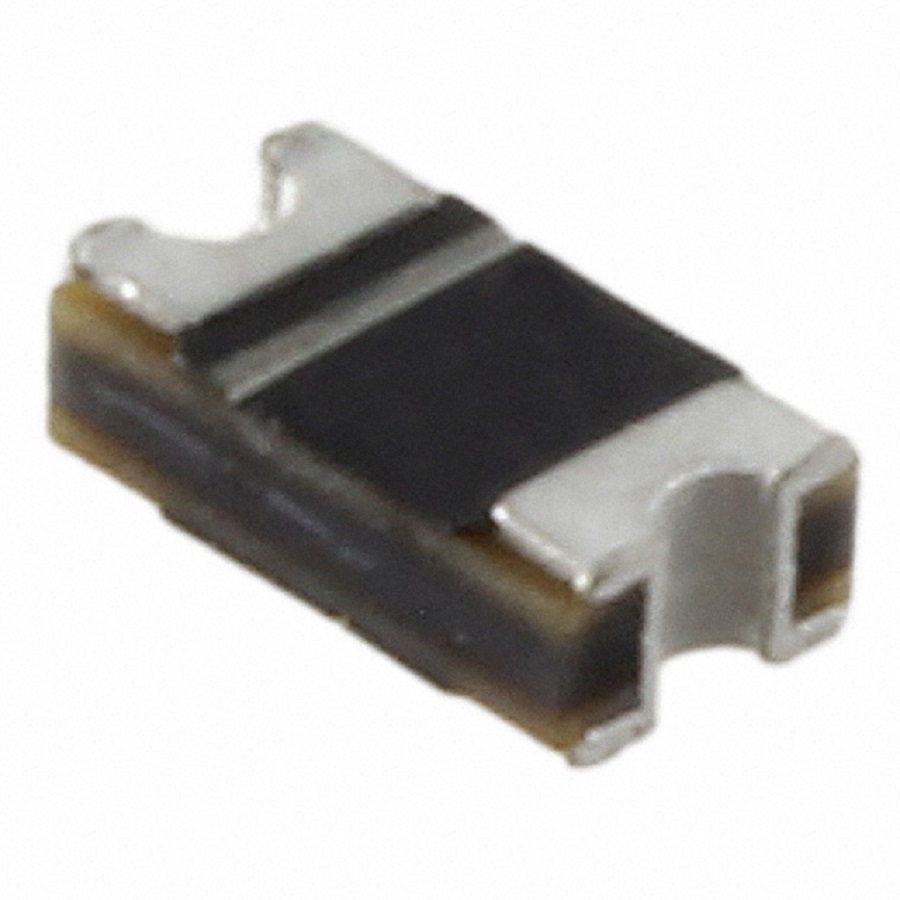

CD1206-B2100
Manufacturer:
Bourns
Mfr.Part #:
CD1206-B2100
Datasheet:
Description:
Schottky Diodes 1206(3216 Metric) SMD/SMT Single Forward Current:2 A Forward Voltage:850 mV Max Repetitive Reverse Voltage (Vrrm):100 V Max Forward Surge Current (Ifsm):40 A
| Parameter | Value |
|---|---|
| Length | 3.6 mm |
| Width | 2.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Number of Pins | 2 |
| Height | 1.16 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Type | Schottky |
| Forward Current | 2 A |
| Forward Voltage | 850 mV |
| Average Rectified Current | 2 A |
| Max Repetitive Reverse Voltage (Vrrm) | 100 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 40 A |
| Peak Non-Repetitive Surge Current | 40 A |
| Reverse Current | 500 µA |
| Schedule B | 8541100080 |
Stock: 4681
Distributors
pcbx
pcbxUnit Price$0.35760
Ext.Price$0.35760
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35760 | $0.35760 |
| 10 | $0.31769 | $3.17690 |
| 50 | $0.28224 | $14.11200 |
| 100 | $0.24452 | $24.45200 |
| 500 | $0.21185 | $105.92500 |
| 1000 | $0.20362 | $203.62000 |
| 3000 | $0.19571 | $587.13000 |
| 5000 | $0.18473 | $923.65000 |
