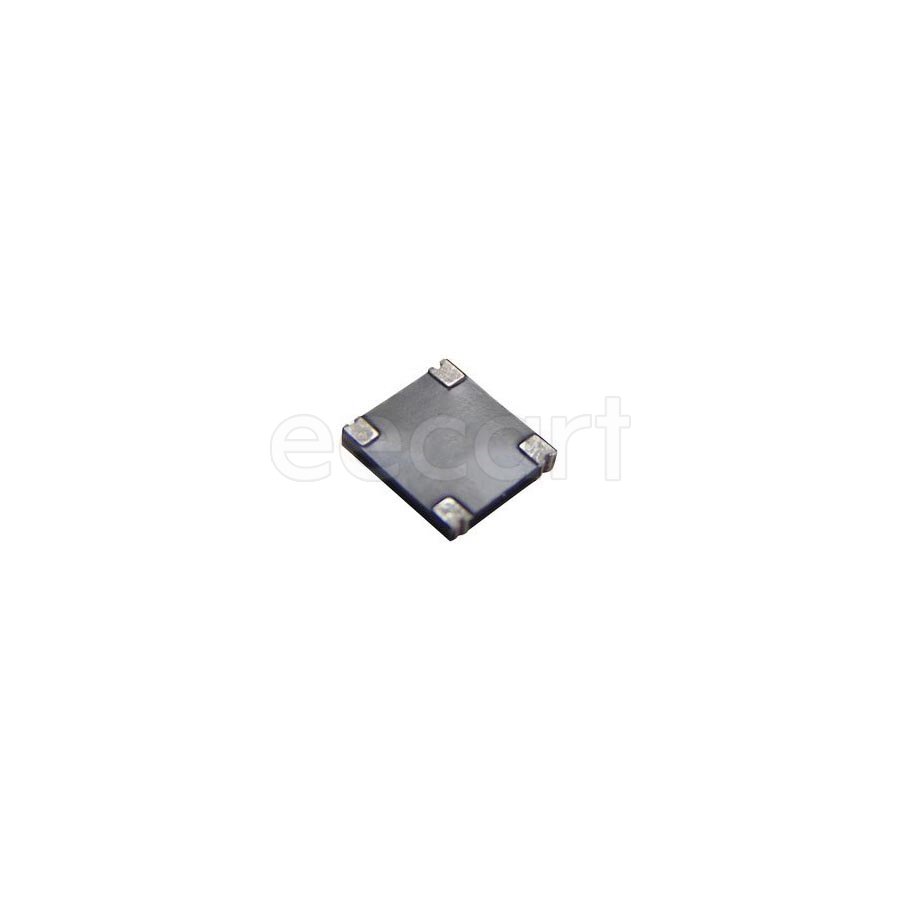

CD2320-B11000
Manufacturer:
Bourns
Mfr.Part #:
CD2320-B11000
Datasheet:
Description:
Bridge Rectifiers SMD/SMT SMD/SMT Single Phase Bridge 1 kV Forward Current:1 A Forward Voltage:1 V
| Parameter | Value |
|---|---|
| Length | 5.4 mm |
| Width | 5.9 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 1.16 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Type | Single Phase Bridge |
| Number of Elements | 1 |
| Forward Current | 1 A |
| Forward Voltage | 1 V |
| Average Rectified Current | 1 A |
| Max Reverse Leakage Current | 5 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 1 kV |
| Element Configuration | Single |
| Max Surge Current | 30 A |
| Forward Surge Current (Ifsm) | 30 A |
| Diode Type | Single Phase |
| Reverse Voltage | 1 kV |
| Peak Non-Repetitive Surge Current | 30 A |
| Reverse Current | 5 µA |
| Peak Reverse Voltage | 1 kV |
