CDC5D23BNP-470KC
Manufacturer:
Sumida
Mfr.Part #:
CDC5D23BNP-470KC
Datasheet:
Description:

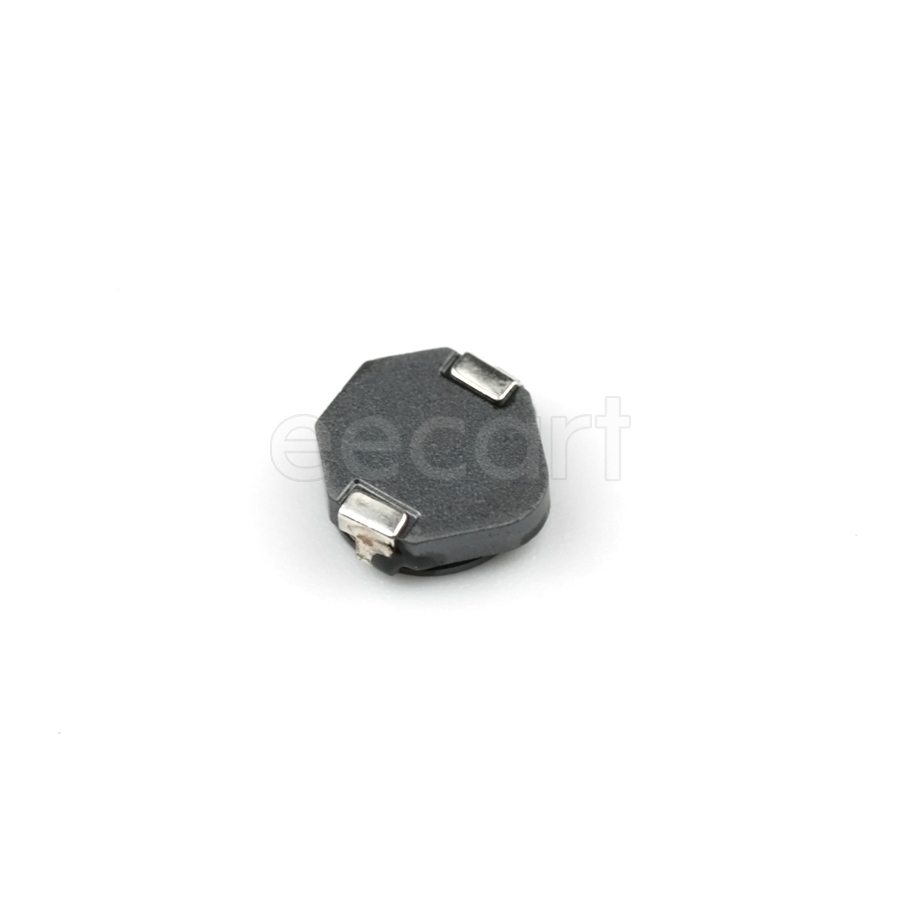

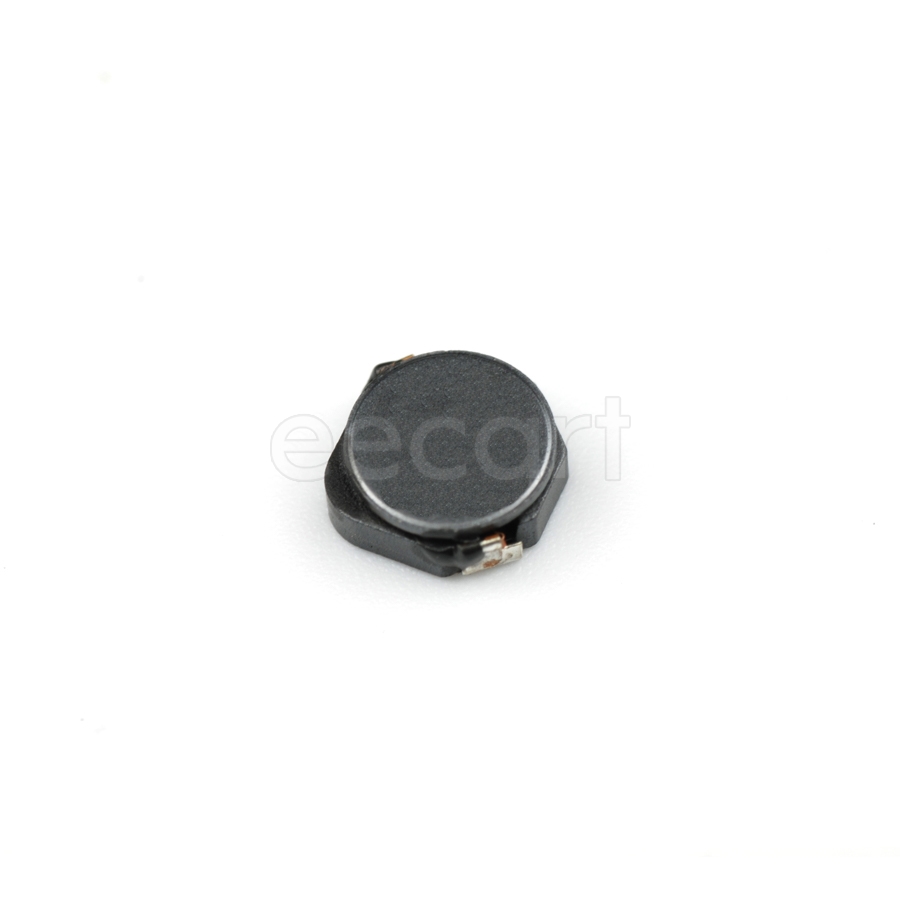

Fixed Inductors 5.80mmL×5.80mmW×2.50mmH PCB Mount 47 µH 10 % 490 mA 546 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 2.5 mm |
| Length | 5.7912 mm |
| Width | 5.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.5 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 215.002783 mg |
| Type | Wirewound |
| Current Rating | 490 mA |
| DC Resistance (DCR) | 546 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Unshielded |
| Inductance | 47 µH |
| Core Material | Ferrite |
| Max DC Current | 490 mA |
Stock: 1018
Distributors
pcbx
pcbxUnit Price$0.49415
Ext.Price$0.49415
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.49415 | $0.49415 |
| 10 | $0.43003 | $4.30030 |
| 25 | $0.39413 | $9.85325 |
| 50 | $0.35452 | $17.72600 |
| 100 | $0.31889 | $31.88900 |
| 300 | $0.28562 | $85.68600 |
| 500 | $0.25582 | $127.91000 |
| 1000 | $0.22912 | $229.12000 |
| 3000 | $0.22267 | $668.01000 |
| 5000 | $0.21640 | $1082.00000 |
| 10000 | $0.21031 | $2103.10000 |
