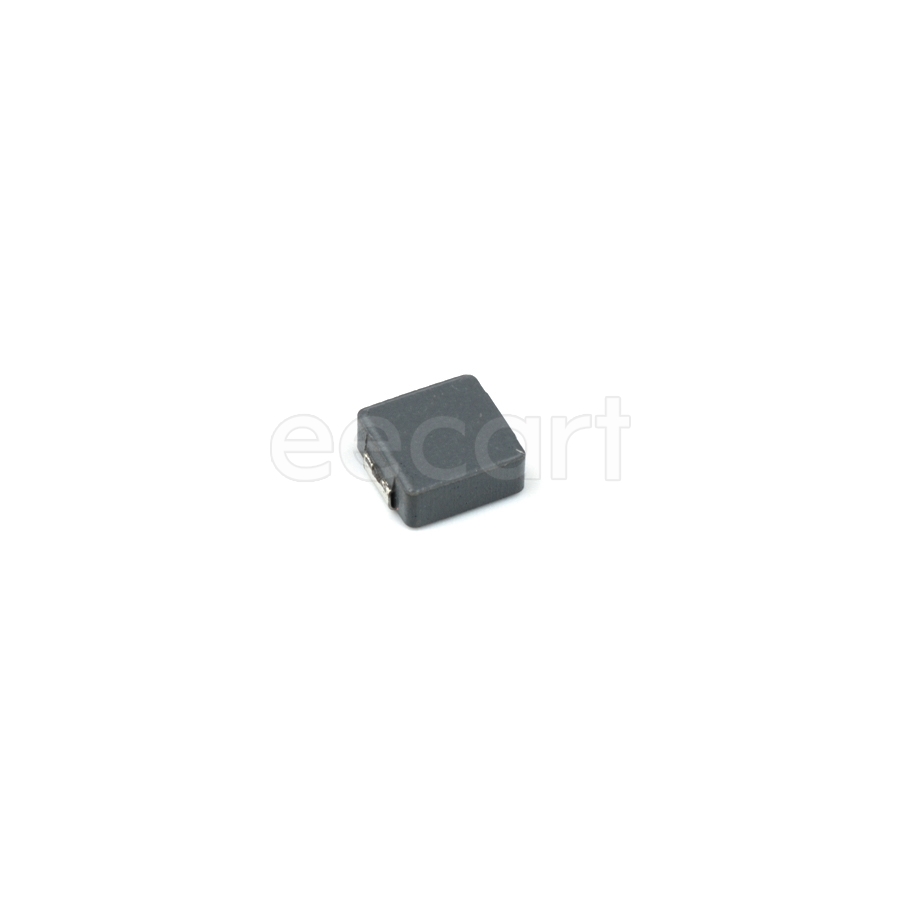

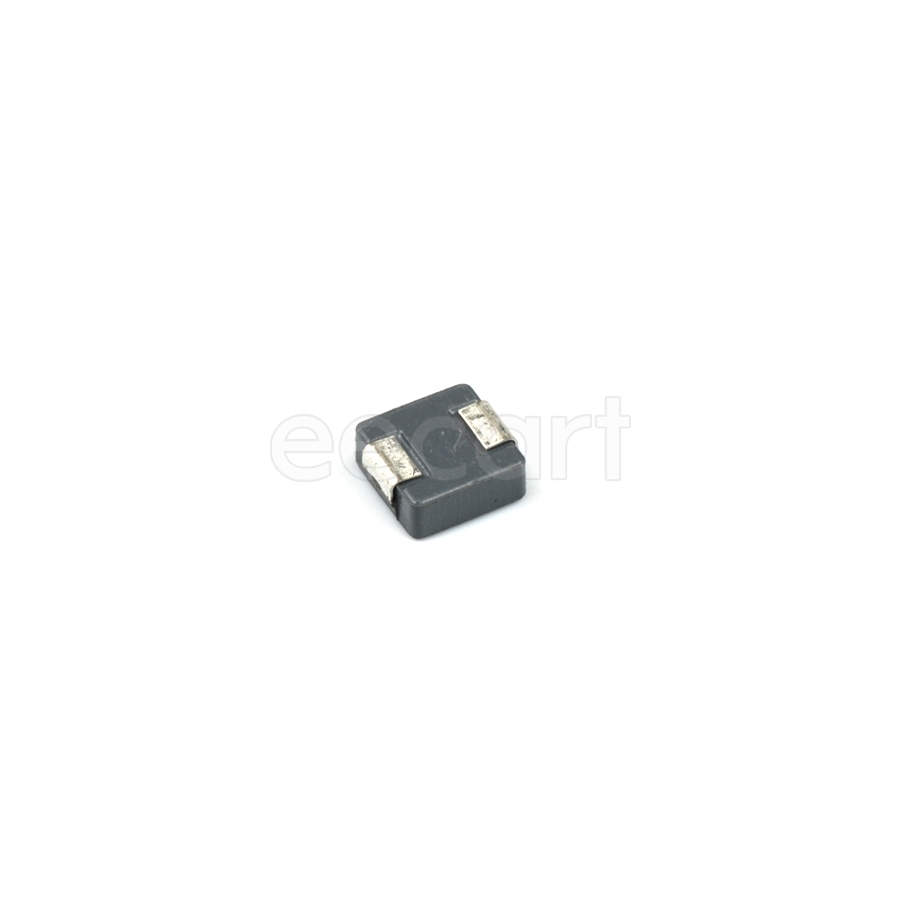

CDMC6D28NP-3R3MC
Manufacturer:
Sumida
Mfr.Part #:
CDMC6D28NP-3R3MC
Datasheet:
Description:
Fixed Inductors 7.25mmL×6.50mmW×3.00mmH SMD/SMT 3.3 µH 20 % 4.9 A 30.6 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 7.239 mm |
| Width | 6.5024 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 7 mm |
| Packaging | Reel |
| Depth | 6.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 4.9 A |
| DC Resistance (DCR) | 30.6 mΩ |
| Test Frequency | 1 MHz |
| Shielding | Shielded |
| Inductance | 3.3 µH |
| Core Material | Composite, Metal |
| Max DC Current | 6.3 A |
| Saturation Current | 5 A |
| Type | Wirewound |
Stock: 323
Distributors
pcbx
pcbxUnit Price$0.71985
Ext.Price$0.71985
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71985 | $0.71985 |
| 10 | $0.70782 | $7.07820 |
| 25 | $0.69599 | $17.39975 |
| 50 | $0.68436 | $34.21800 |
| 100 | $0.67292 | $67.29200 |
| 300 | $0.66167 | $198.50100 |
| 500 | $0.65060 | $325.30000 |
| 1000 | $0.32402 | $324.02000 |
