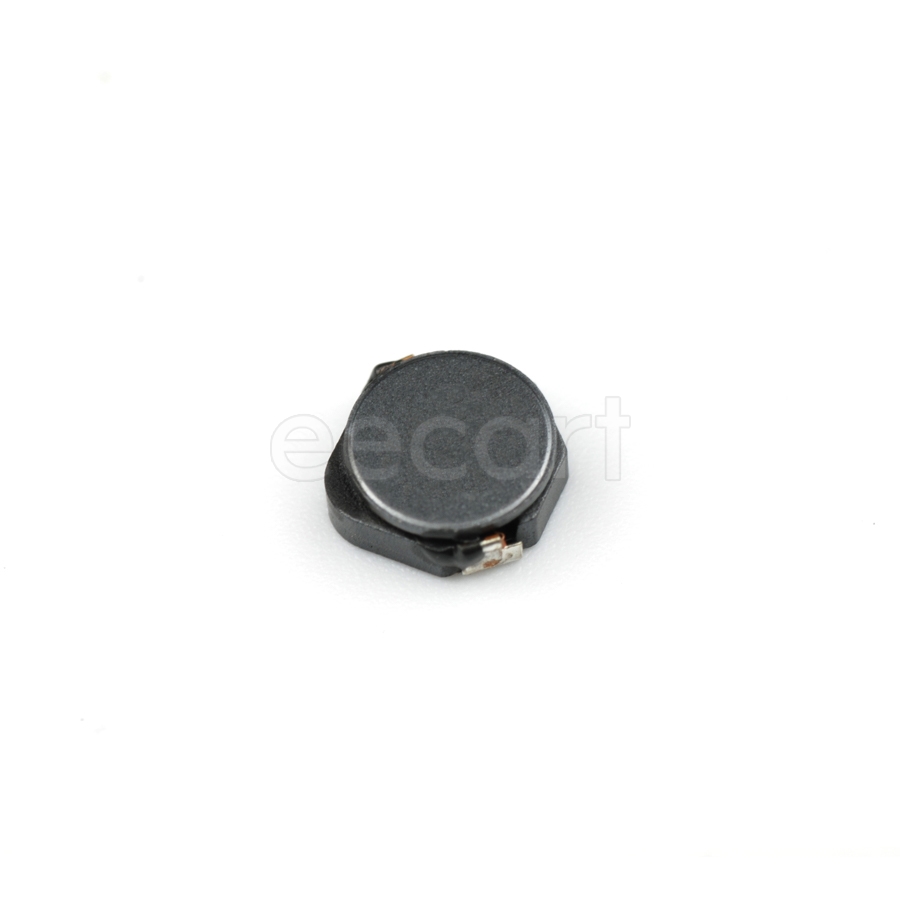

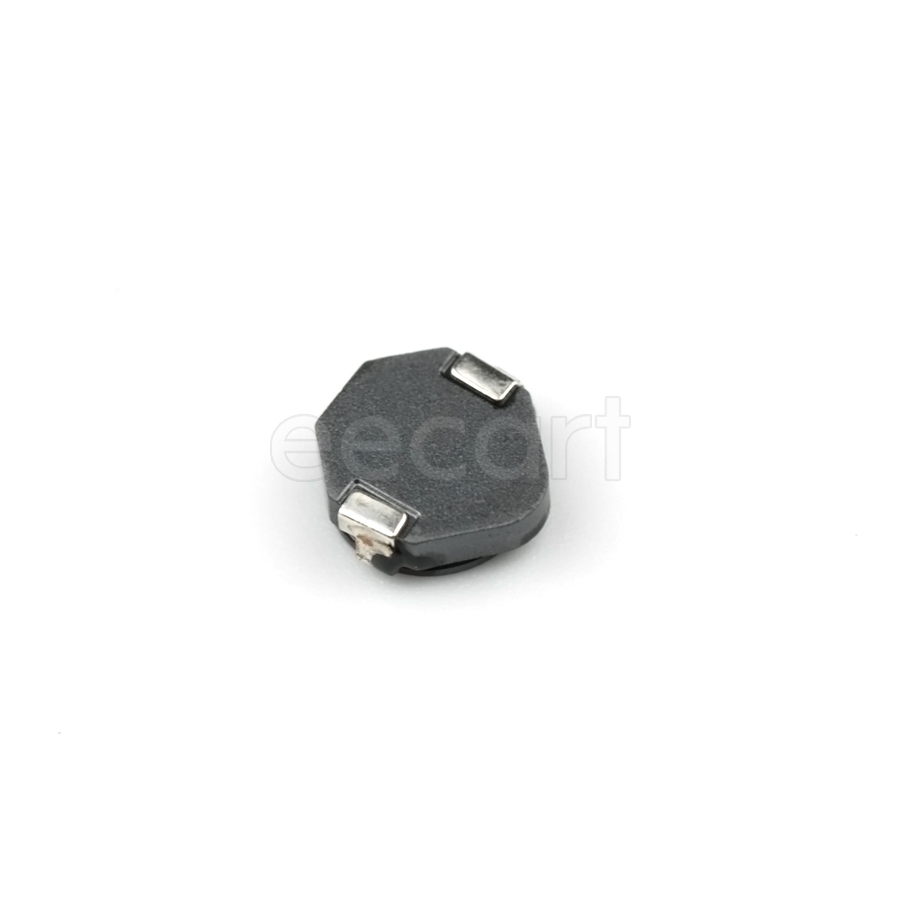

CDPH4D19FNP-3R3MC
Manufacturer:
Sumida
Mfr.Part #:
CDPH4D19FNP-3R3MC
Datasheet:
Description:
Fixed Inductors 4.90mmL×4.90mmW×2.00mmH SMD/SMT 3.3 µH 20 % 3.8 A 33 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 2.01 mm |
| Length | 5.2 mm |
| Width | 4.9022 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 2020 |
| Height | 2 mm |
| Packaging | Reel |
| Depth | 5.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 3.8 A |
| DC Resistance (DCR) | 33 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 3.3 µH |
| Core Material | Ferrite |
| Max DC Current | 3.8 A |
| DC Current | 3.8 A |
| Saturation Current | 1.5 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 80
Distributors
pcbx
pcbxUnit Price$0.53860
Ext.Price$0.53860
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53860 | $0.53860 |
| 10 | $0.44371 | $4.43710 |
| 25 | $0.41577 | $10.39425 |
| 50 | $0.38959 | $19.47950 |
| 100 | $0.36506 | $36.50600 |
| 300 | $0.36162 | $108.48600 |
| 500 | $0.35821 | $179.10500 |
| 1000 | $0.29067 | $290.67000 |
