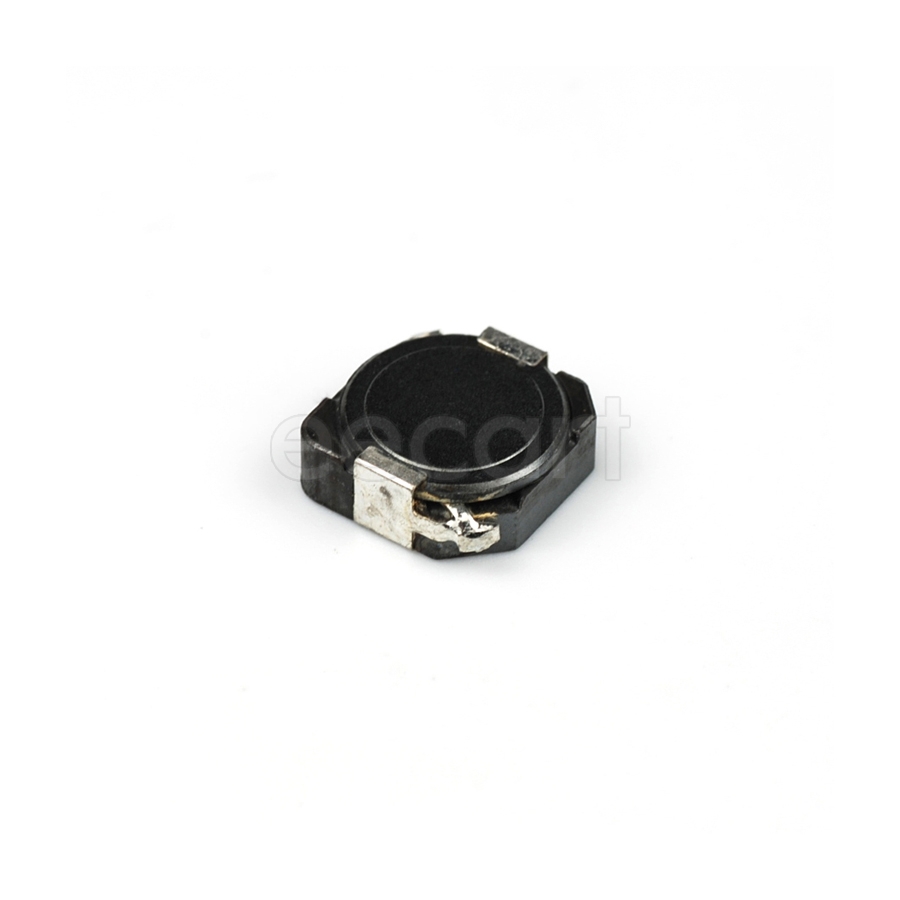

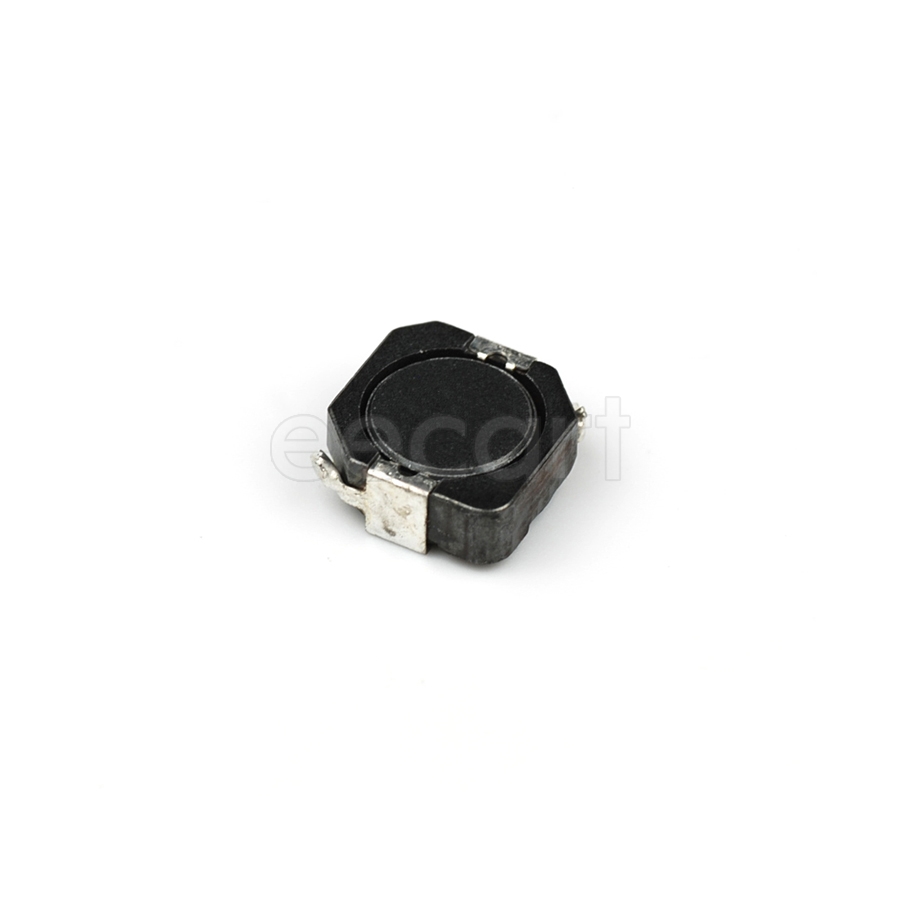

CDRH104RNP-220NC
Manufacturer:
Sumida
Mfr.Part #:
CDRH104RNP-220NC
Datasheet:
Description:
Fixed Inductors 10.20mmL×10.00mmW×3.80mmH SMD/SMT 22 µH 30 % 2.5 A 73 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 3.99 mm |
| Length | 10.5 mm |
| Width | 10.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Height | 4 mm |
| Packaging | Reel |
| Depth | 10.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 73 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 22 µH |
| Core Material | Ferrite |
| Max DC Current | 2.5 A |
| DC Current | 2.5 A |
| Saturation Current | 2.9 A |
| Type | Wirewound |
Stock: 108
Distributors
pcbx
pcbxUnit Price$0.47328
Ext.Price$0.47328
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47328 | $0.47328 |
| 10 | $0.36816 | $3.68160 |
| 25 | $0.33210 | $8.30250 |
| 50 | $0.29958 | $14.97900 |
| 100 | $0.27024 | $27.02400 |
| 300 | $0.25461 | $76.38300 |
| 500 | $0.23988 | $119.94000 |
| 1000 | $0.22620 | $226.20000 |
