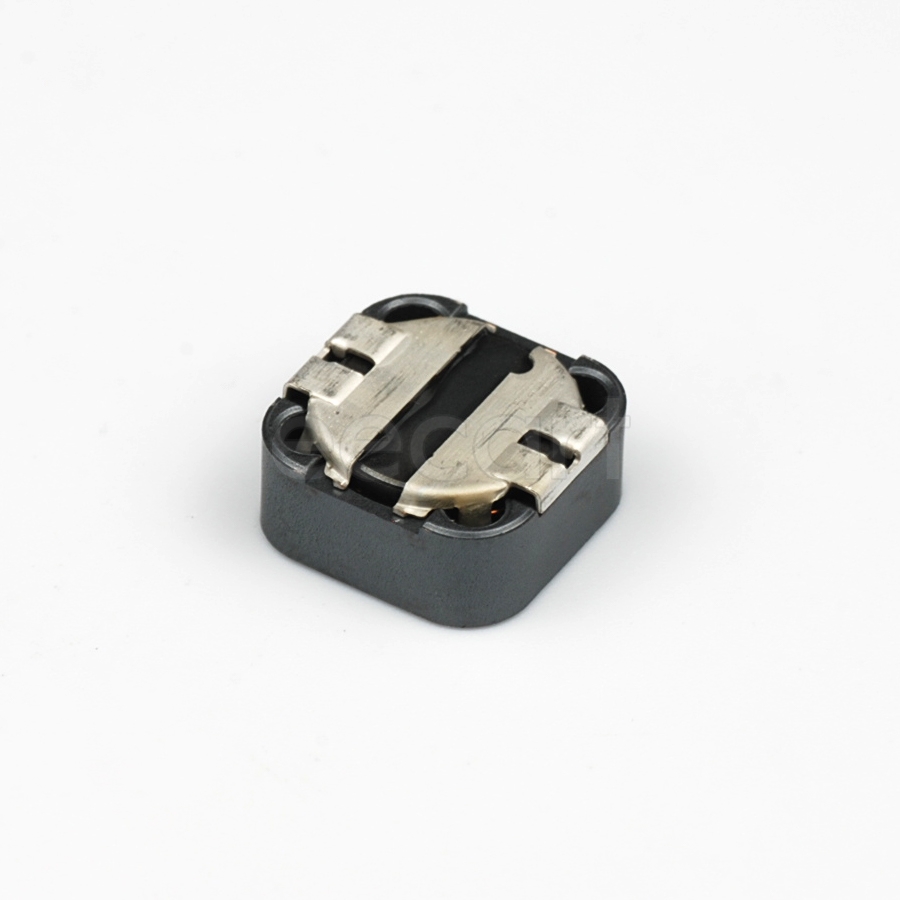

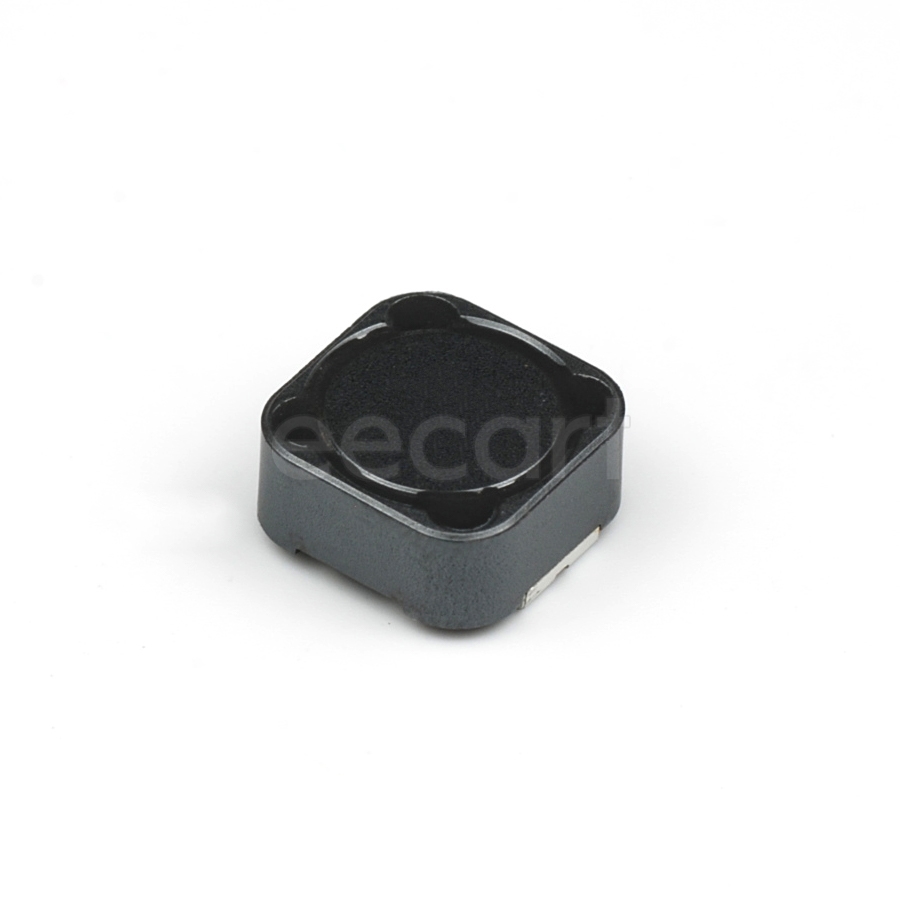

CDRH124NP-6R8MC
Manufacturer:
Sumida
Mfr.Part #:
CDRH124NP-6R8MC
Datasheet:
Description:
Fixed Inductors 12.00mm×12.00mm SMD/SMT 6.8 µH 20 % 4.9 A 23 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.5 mm |
| Length | 12.3 mm |
| Width | 11.9888 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.5 mm |
| Packaging | Reel |
| Depth | 12.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 2.3 g |
| Type | Wirewound |
| Current Rating | 4.9 A |
| DC Resistance (DCR) | 23 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 6.8 µH |
| Core Material | Ferrite |
| Max DC Current | 4.9 A |
| Saturation Current | 6.4 A |
Stock: 294
Distributors
pcbx
pcbxUnit Price$0.78824
Ext.Price$0.78824
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78824 | $0.78824 |
| 10 | $0.65744 | $6.57440 |
| 25 | $0.63180 | $15.79500 |
| 50 | $0.55730 | $27.86500 |
| 100 | $0.49159 | $49.15900 |
| 300 | $0.43052 | $129.15600 |
| 500 | $0.37703 | $188.51500 |
| 1000 | $0.34368 | $343.68000 |
| 3000 | $0.32704 | $981.12000 |
| 5000 | $0.31120 | $1556.00000 |
