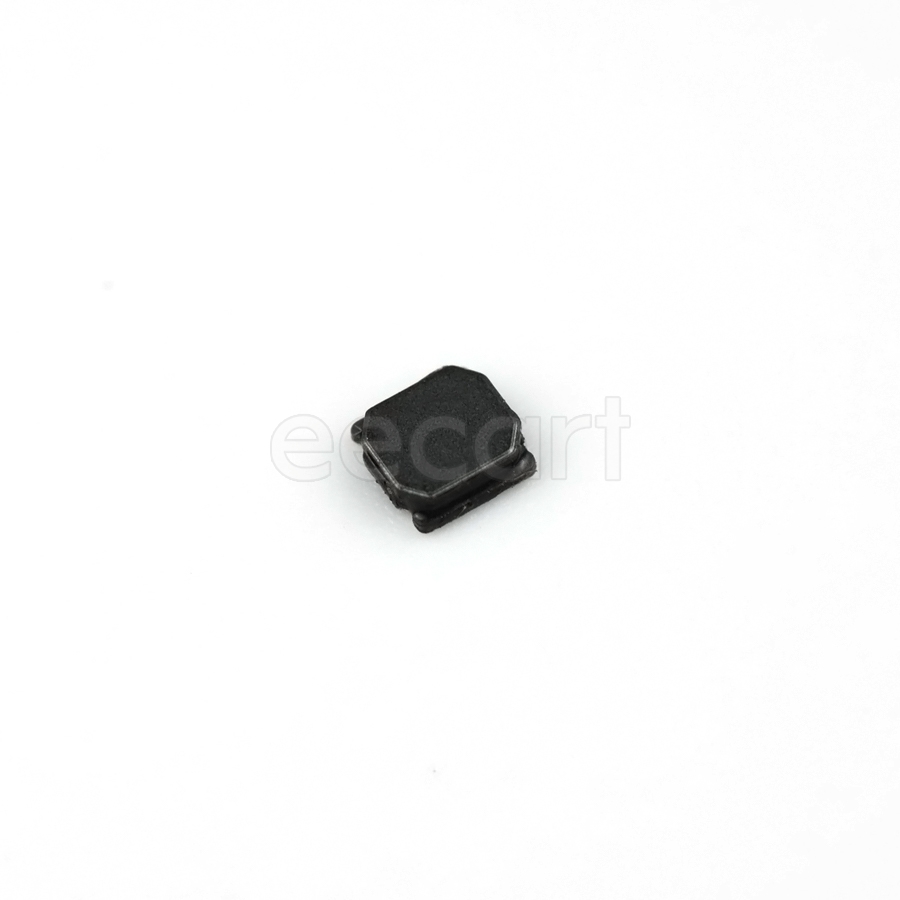

CDRH2D09NP-4R7MC
Manufacturer:
Sumida
Mfr.Part #:
CDRH2D09NP-4R7MC
Datasheet:
Description:
Fixed Inductors 3.00mmL×3.00mmW×1.00mmH SMD/SMT 4.7 µH 25 % 640 mA 220 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 25 % |
| Height - Seated (Max) | 0.991 mm |
| Length | 2.9972 mm |
| Width | 2.9972 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 3.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 640 mA |
| DC Resistance (DCR) | 220 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| Max DC Current | 410 mA |
| Saturation Current | 410 mA |
| Type | Wirewound |
