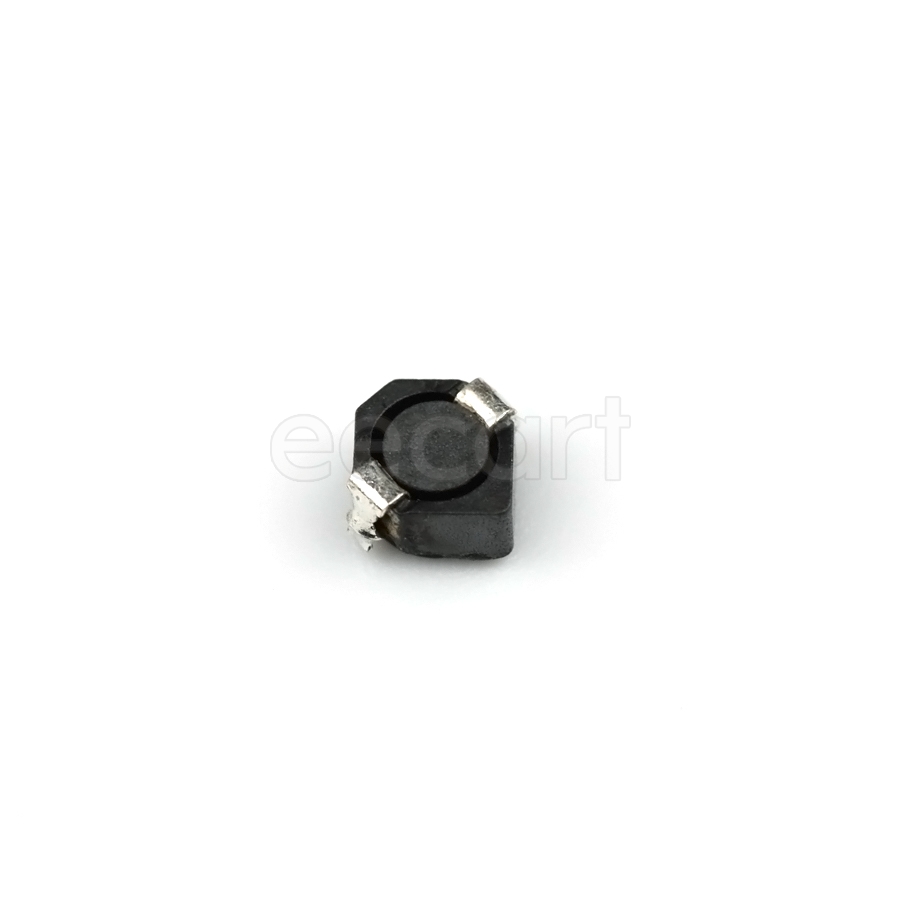

CDRH2D14NP-2R2NC
Manufacturer:
Sumida
Mfr.Part #:
CDRH2D14NP-2R2NC
Datasheet:
Description:
Fixed Inductors 3.00mmL×3.00mmW×1.55mmH SMD/SMT 2.2 µH 30 % 1.6 A 94 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 1.1 mm |
| Length | 2.9972 mm |
| Width | 2.9972 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.55 mm |
| Packaging | Reel |
| Depth | 3.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 94 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| Max DC Current | 1.5 A |
| Saturation Current | 1.5 A |
| Type | Wirewound |
Stock: 2093
Distributors
pcbx
pcbxUnit Price$0.35693
Ext.Price$0.35693
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35693 | $0.35693 |
| 10 | $0.27744 | $2.77440 |
| 50 | $0.23648 | $11.82400 |
| 100 | $0.20157 | $20.15700 |
| 500 | $0.19245 | $96.22500 |
| 1000 | $0.18032 | $180.32000 |
