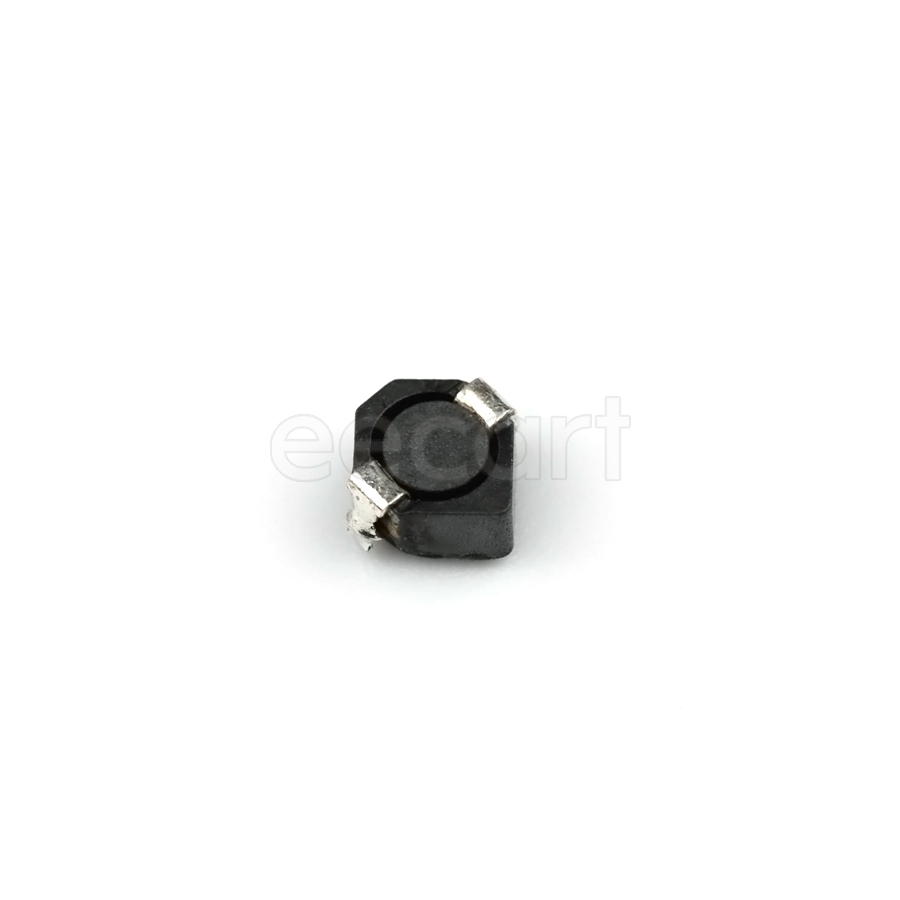

CDRH2D18/HPNP-100NC
Manufacturer:
Sumida
Mfr.Part #:
CDRH2D18/HPNP-100NC
Datasheet:
Description:
Fixed Inductors 3.00mmL×3.00mmW×2.00mmH PCB Mount 10 µH 30 % 900 mA 245 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 2 mm |
| Length | 2.9972 mm |
| Width | 2.9972 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 2 mm |
| Packaging | Reel |
| Depth | 3.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 65.005457 mg |
| Type | Wirewound |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 245 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| Max DC Current | 900 mA |
| Saturation Current | 850 mA |
Stock: 1569
Distributors
pcbx
pcbxUnit Price$0.51901
Ext.Price$0.51901
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51901 | $0.51901 |
| 10 | $0.42988 | $4.29880 |
| 25 | $0.40263 | $10.06575 |
| 50 | $0.37711 | $18.85550 |
| 100 | $0.35321 | $35.32100 |
| 300 | $0.32760 | $98.28000 |
| 500 | $0.30385 | $151.92500 |
| 1000 | $0.28182 | $281.82000 |
