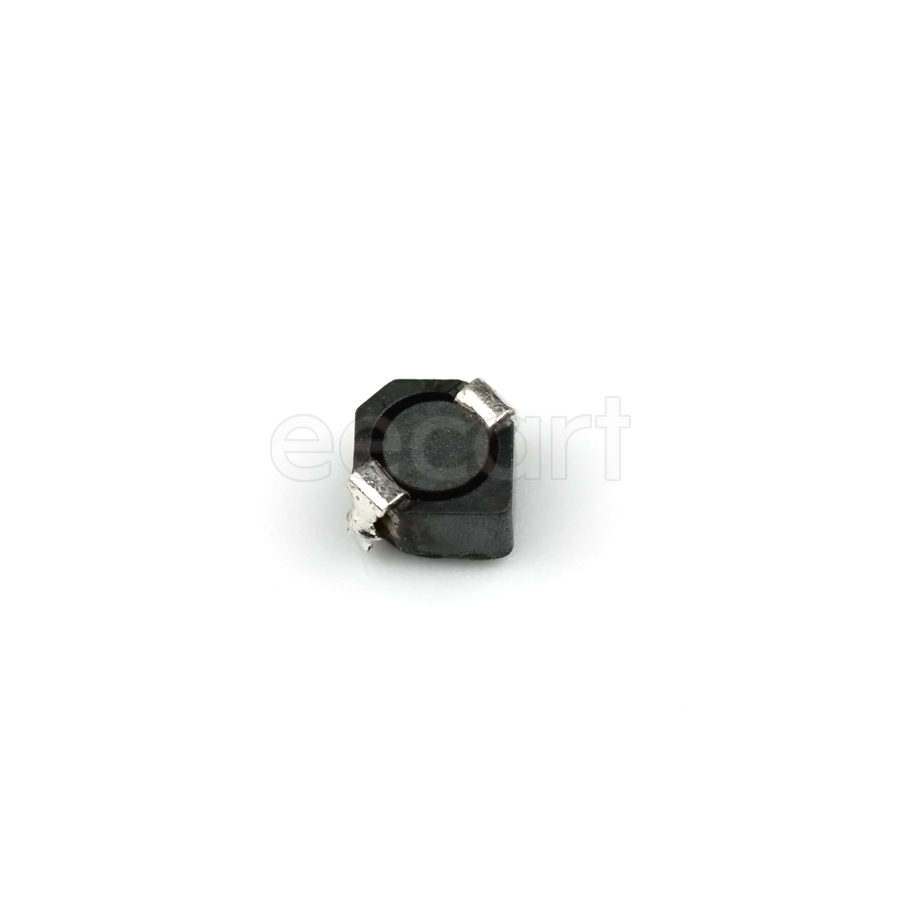

CDRH3D14NP-3R3NC
Manufacturer:
Sumida
Mfr.Part #:
CDRH3D14NP-3R3NC
Datasheet:
Description:
Fixed Inductors 3.80mmL×3.80mmW×1.50mmH SMD/SMT 3.3 µH 25 % 1.24 A 100 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 25 % |
| Height - Seated (Max) | 1.5 mm |
| Length | 3.81 mm |
| Width | 4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.5 mm |
| Packaging | Reel |
| Depth | 4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 69.994973 mg |
| Current Rating | 1.24 A |
| DC Resistance (DCR) | 100 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 3.3 µH |
| Core Material | Ferrite |
| Max DC Current | 1.24 A |
| Saturation Current | 1.35 A |
| Type | Wirewound |
