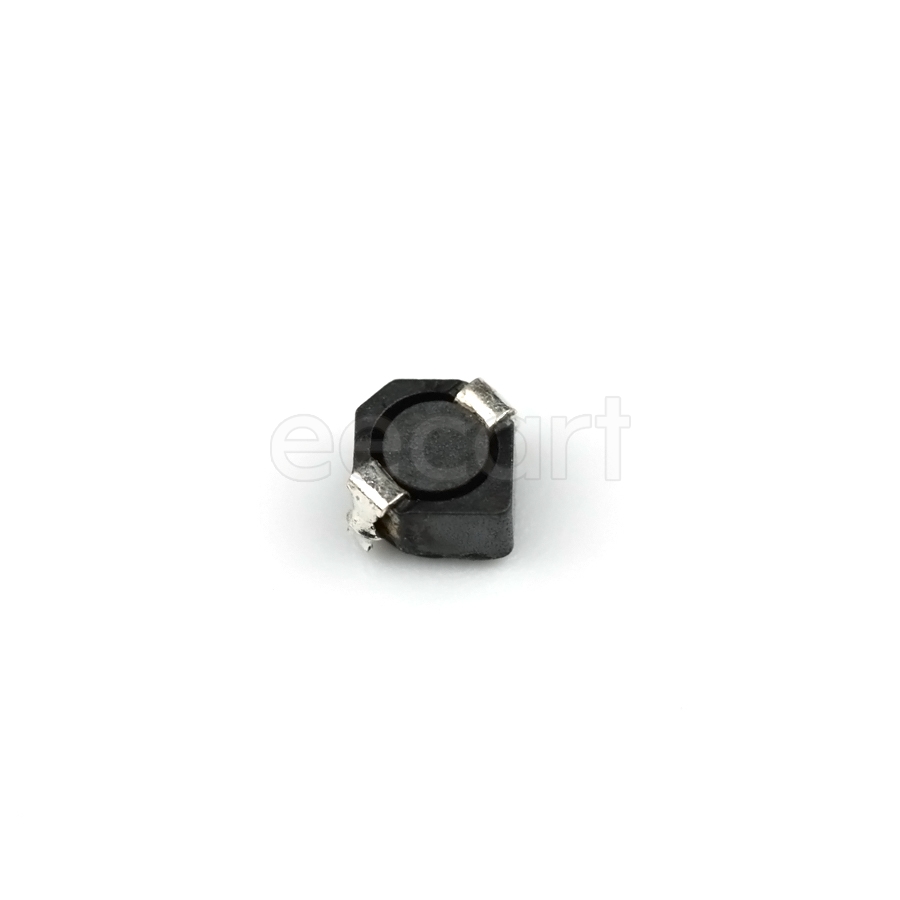

CDRH3D18NP-100NC
Manufacturer:
Sumida
Mfr.Part #:
CDRH3D18NP-100NC
Datasheet:
Description:
Fixed Inductors 3.80mmL×3.80mmW×2.00mmH SMD/SMT 10 µH 30 % 900 mA 205 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 2.01 mm |
| Length | 3.81 mm |
| Width | 3.81 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 2 mm |
| Packaging | Reel |
| Depth | 4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 205 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| Max DC Current | 900 mA |
| Saturation Current | 900 mA |
| Type | Wirewound |
