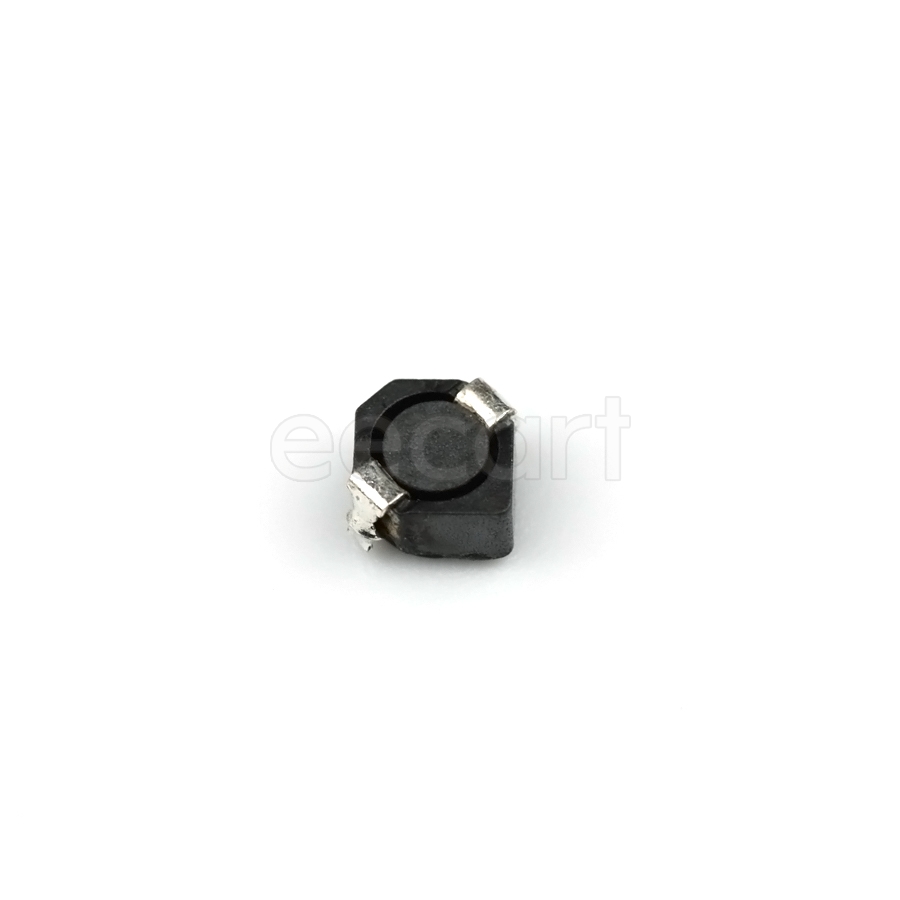

CDRH3D23NP-4R7PC
Manufacturer:
Sumida
Mfr.Part #:
CDRH3D23NP-4R7PC
Datasheet:
Description:
Fixed Inductors 3.80mmL×3.80mmW×2.50mmH SMD/SMT 4.7 µH 25 % 1.9 A 68.8 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 25 % |
| Height - Seated (Max) | 2.49 mm |
| Length | 3.92 mm |
| Width | 3.92 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.5 mm |
| Packaging | Reel |
| Depth | 3.92 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 0.112 g |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 68.8 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| Max DC Current | 1.9 A |
| DC Current | 1.9 A |
| Saturation Current | 1.3 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 1155
Distributors
pcbx
pcbxUnit Price$0.45024
Ext.Price$0.45024
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45024 | $0.45024 |
| 10 | $0.35549 | $3.55490 |
| 25 | $0.32288 | $8.07200 |
| 50 | $0.29326 | $14.66300 |
| 100 | $0.26636 | $26.63600 |
| 300 | $0.25491 | $76.47300 |
| 500 | $0.24396 | $121.98000 |
| 1000 | $0.22902 | $229.02000 |
