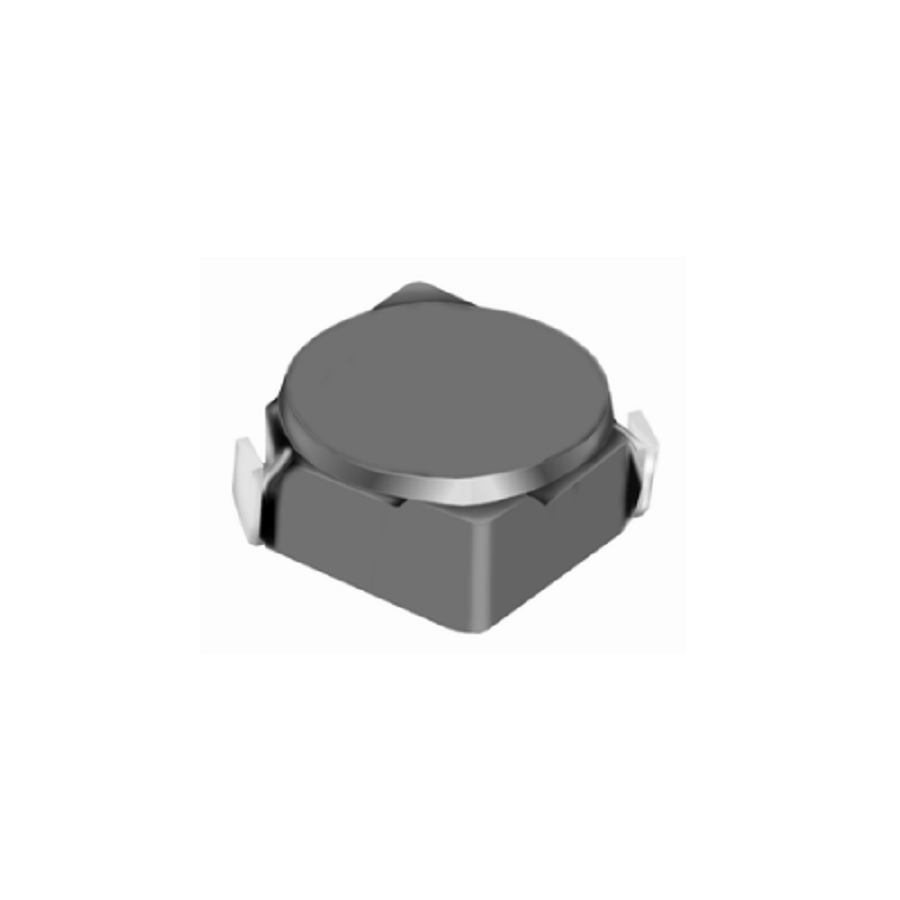

CDRH4D22HPNP-100MC
Manufacturer:
Sumida
Mfr.Part #:
CDRH4D22HPNP-100MC
Datasheet:
Description:
Fixed Inductors 4.70mmL×4.70mmW×6.90mmH SMD/SMT 10 µH 20 % 1.3 A 143.8 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 2.39 mm |
| Length | 4.699 mm |
| Width | 4.699 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.4 mm |
| Packaging | Reel |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 200.005886 mg |
| Type | Wirewound |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 143.8 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| Max DC Current | 1.3 A |
| Saturation Current | 1.5 A |
Stock: 850
Distributors
pcbx
pcbxUnit Price$0.43238
Ext.Price$0.43238
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43238 | $0.43238 |
| 10 | $0.33658 | $3.36580 |
| 25 | $0.30334 | $7.58350 |
| 50 | $0.27338 | $13.66900 |
| 100 | $0.24638 | $24.63800 |
| 300 | $0.23794 | $71.38200 |
| 500 | $0.22979 | $114.89500 |
| 1000 | $0.21621 | $216.21000 |
