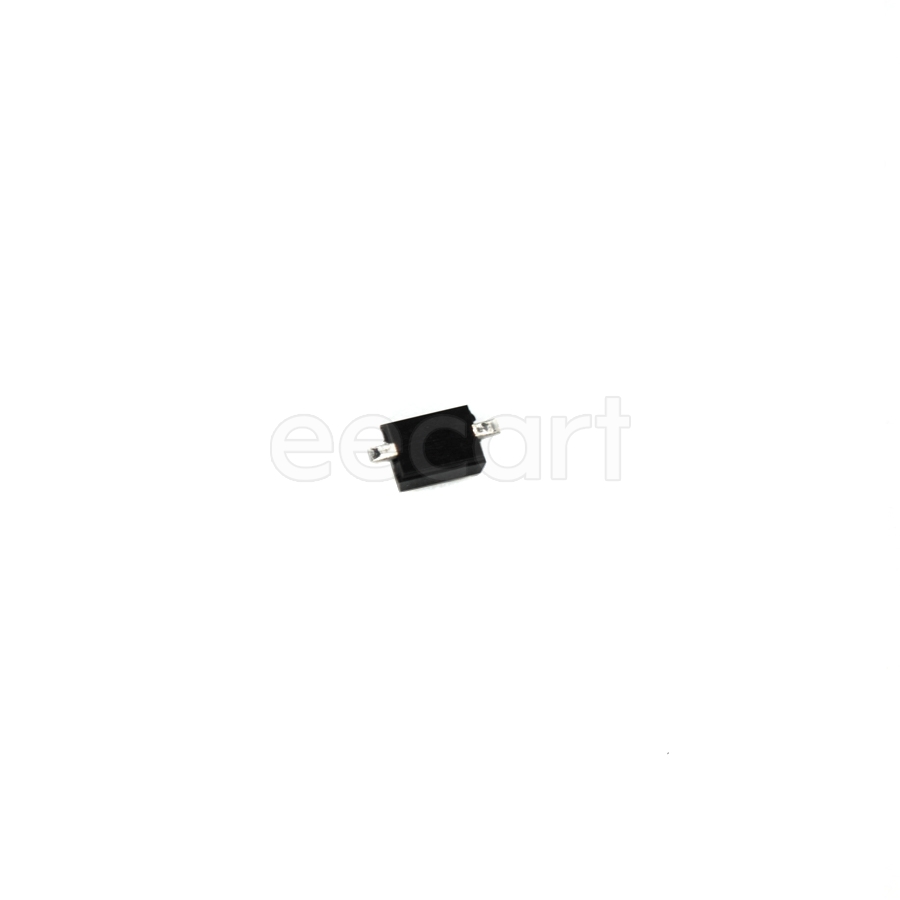

CDSOD323-T05
Manufacturer:
Bourns
Mfr.Part #:
CDSOD323-T05
Datasheet:
Description:
TVS Diodes PG-SOD323-2 SMD/SMT Working Voltage:5 V Breakdown Voltage:6 V Clamping Voltage:9.8 V Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 1 pF |
| Length | 1.9 mm |
| Width | 1.45 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 5 µA |
| Composition(Kit Type) | Zener |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 1.45 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Working Voltage | 5 V |
| Max Power Dissipation | 350 W |
| Peak Pulse Current | 17 A |
| Number of Channels | 1 |
| Reverse Recovery Time | |
| Max Reverse Leakage Current | |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 9.8 V |
| Power Line Protection | No |
| Number of Unidirectional Channels | 1 |
| Max Surge Current | 17 A |
| Reverse Breakdown Voltage | 6 V |
| Test Current | 1 mA |
| Max Junction Temperature (Tj) | 150 °C |
| Reverse Voltage (DC) | |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
| Diode Capacitance | 3 pF |
| Breakdown Voltage | 6 V |
Stock: 3915
Distributors
pcbx
pcbxUnit Price$0.18970
Ext.Price$0.18970
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18970 | $0.18970 |
| 10 | $0.17857 | $1.78570 |
| 50 | $0.16810 | $8.40500 |
| 100 | $0.15816 | $15.81600 |
| 500 | $0.14880 | $74.40000 |
| 1000 | $0.14370 | $143.70000 |
| 3000 | $0.13877 | $416.31000 |
| 5000 | $0.13563 | $678.15000 |
