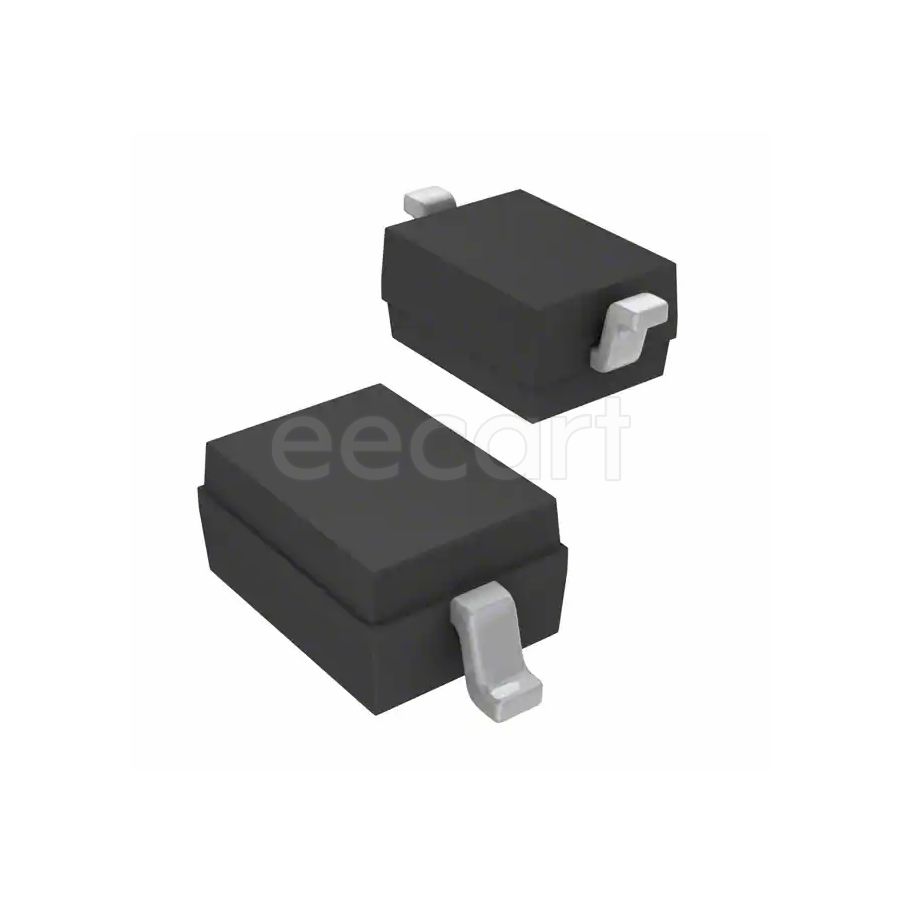

CDSOD323-T12LC
Manufacturer:
Bourns
Mfr.Part #:
CDSOD323-T12LC
Datasheet:
Description:
TVS Diodes SOD-323-2 SMD/SMT Working Voltage:12 V Breakdown Voltage:13.3 V Clamping Voltage:28.6 V Peak Pulse Power:250 W Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Capacitance | 1 pF |
| Length | 1.9 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 1 µA |
| Composition(Kit Type) | Zener |
| Depth | 1.45 mm |
| Lead Free | |
| Radiation Hardening | No |
| Polarity | Bidirectional |
| REACH SVHC | No SVHC |
| Working Voltage | 12 V |
| Max Power Dissipation | 250 W |
| Peak Pulse Current | 11 A |
| Number of Channels | 1 |
| Reverse Recovery Time | |
| Breakdown Voltage | 13.3 V |
| Max Reverse Leakage Current | |
| Element Configuration | Single |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 13.3 V |
| Reverse Standoff Voltage | 12 V |
| Clamping Voltage | 28.6 V |
| Peak Pulse Power | 250 W |
| Power Line Protection | No |
| Number of Bidirectional Channels | 1 |
| Max Breakdown Voltage | 13.3 V |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
| Diode Capacitance | 1 pF |
| Packaging | Reel |
| RoHS | Compliant |
Stock: 2260
Distributors
pcbx
pcbxUnit Price$0.54067
Ext.Price$0.54067
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54067 | $0.54067 |
| 10 | $0.43315 | $4.33150 |
| 25 | $0.39707 | $9.92675 |
| 50 | $0.36400 | $18.20000 |
| 100 | $0.33368 | $33.36800 |
| 300 | $0.32037 | $96.11100 |
| 500 | $0.30759 | $153.79500 |
| 1000 | $0.29236 | $292.36000 |
