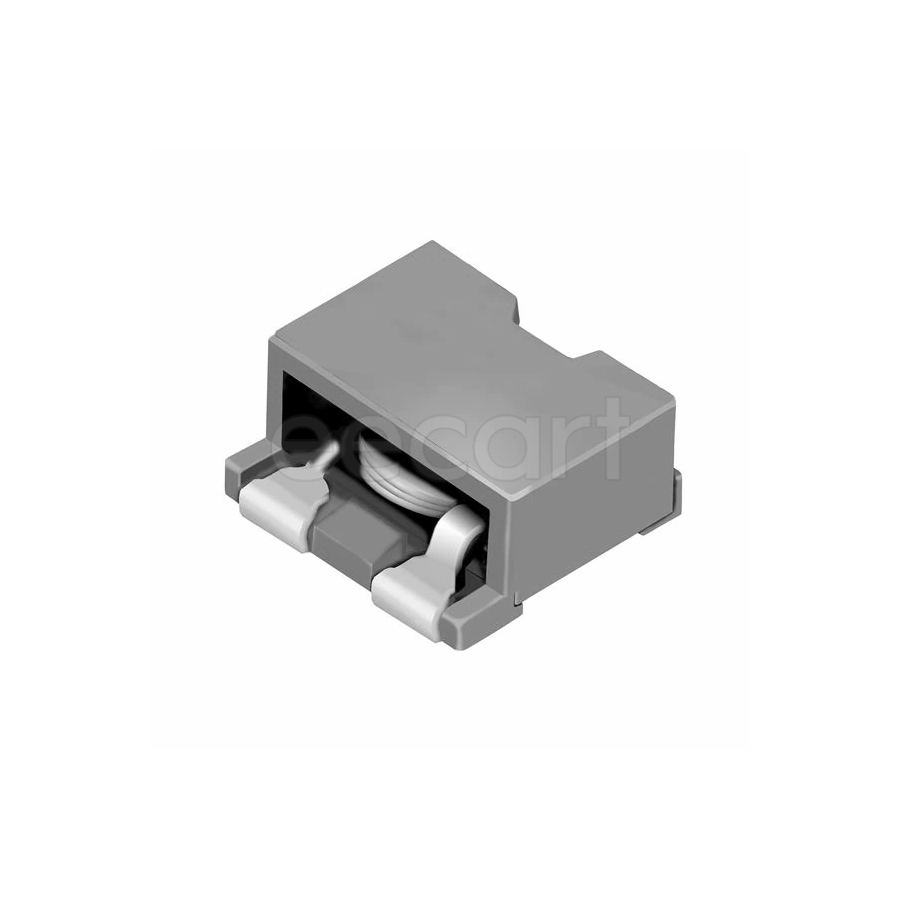

CEP125NP-4R3MC-U
Manufacturer:
Sumida
Mfr.Part #:
CEP125NP-4R3MC-U
Datasheet:
Description:
Fixed Inductors 12.50mmL×12.50mmW×5.60mmH SMD/SMT 4.3 µH 20 % 8.2 A 11.4 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.59 mm |
| Length | 12.9 mm |
| Width | 12.4968 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 11.4 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 5.6 mm |
| Packaging | Reel |
| Depth | 12.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 8.2 A |
| DC Resistance (DCR) | 11.4 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 4.3 µH |
| Core Material | Ferrite |
| Max DC Current | 9.1 A |
| DC Current | 8.2 A |
| Saturation Current | 11 A |
| Type | Wirewound |
Stock: 433
Distributors
pcbx
pcbxUnit Price$1.89623
Ext.Price$1.89623
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.89623 | $1.89623 |
| 10 | $1.58931 | $15.89310 |
| 25 | $1.45167 | $36.29175 |
| 50 | $1.28573 | $64.28650 |
| 100 | $1.13877 | $113.87700 |
| 300 | $1.09741 | $329.22300 |
| 500 | $1.05755 | $528.77500 |
| 1000 | $1.00796 | $1007.96000 |
| 3000 | $0.97272 | $2918.16000 |
| 5000 | $0.93871 | $4693.55000 |
