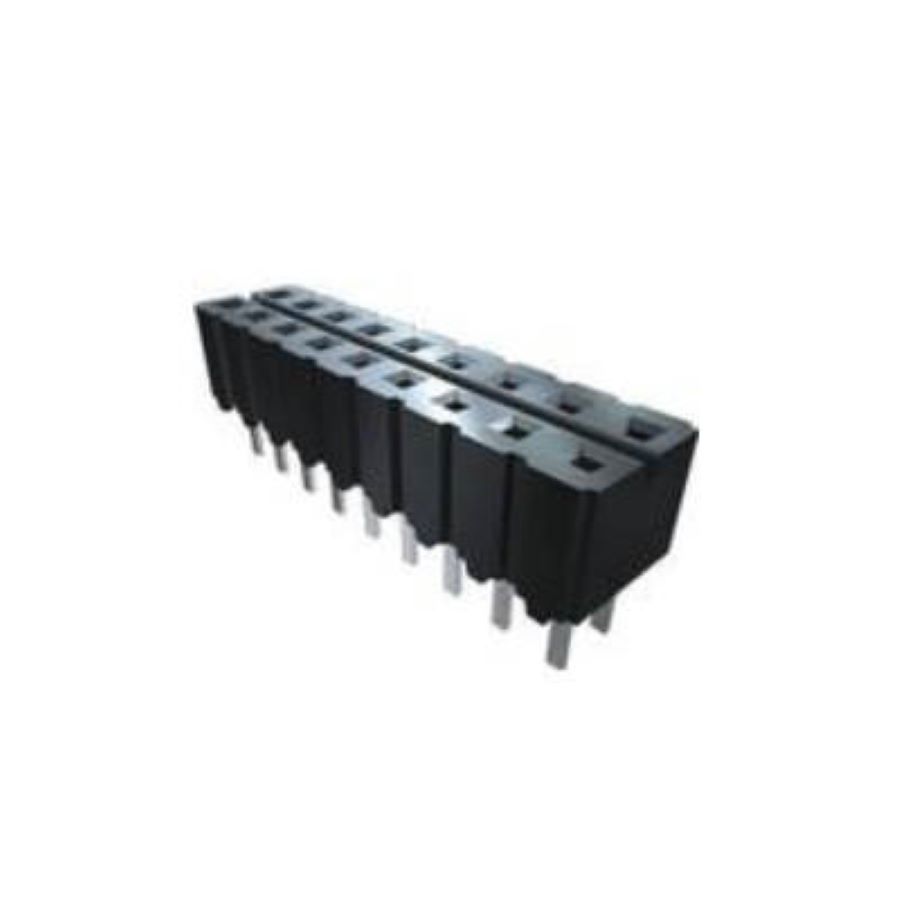

CES-105-01-G-S
Manufacturer:
Samtec
Mfr.Part #:
CES-105-01-G-S
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 3.05 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Gender | Socket (Female) |
| Number of Contacts | 5 |
| Connector Type | Receptacle |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 333 V |
| Housing Color | Black |
| Termination Post Length | 3.25 mm |
Stock: 510
Distributors
pcbx
pcbxUnit Price$1.32087
Ext.Price$1.32087
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.32087 | $1.32087 |
| 10 | $1.15246 | $11.52460 |
| 25 | $1.00552 | $25.13800 |
| 50 | $0.87732 | $43.86600 |
| 100 | $0.76546 | $76.54600 |
| 300 | $0.66786 | $200.35800 |
| 500 | $0.58271 | $291.35500 |
| 1000 | $0.50842 | $508.42000 |
| 3000 | $0.44360 | $1330.80000 |
| 5000 | $0.38704 | $1935.20000 |
| 10000 | $0.33770 | $3377.00000 |
