CG2409X3-C2
Manufacturer:
CEL
Mfr.Part #:
CG2409X3-C2
Datasheet:
Description:

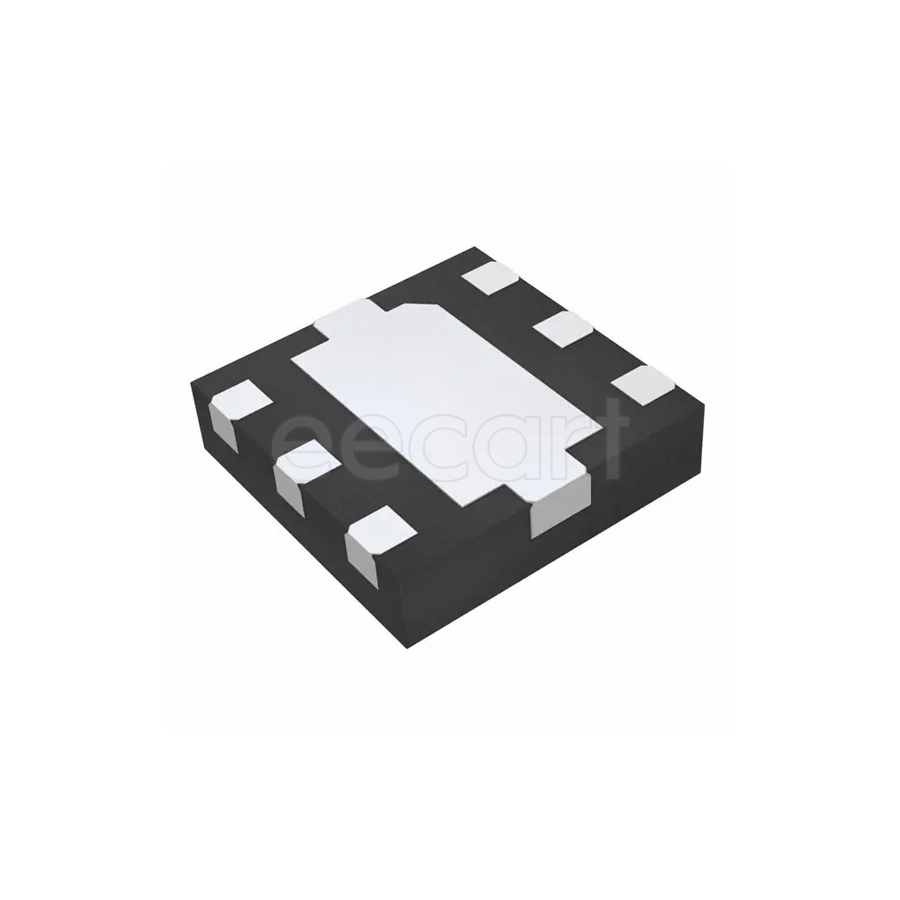

RF Semiconductors and Devices TSON-6 SMD/SMT 50 MHz to 6 GHz
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -45 °C |
| Number of Pins | 6 |
| Circuit Type | SPDT |
| Packaging | Reel |
| RoHS | Compliant |
| Frequency | 50 MHz to 6 GHz |
| Insertion Loss (dB) | 0.55 dB |
| Operating Supply Voltage | 1.8 V to 5 V |
| Max Supply Voltage | 5 V |
| Min Supply Voltage | 1.8 V |
| Supply Voltage | 1.8 V to 5 V |
| Isolation | 34 dB |
| Frequency Range | 50 MHz to 6 GHz |
| RF Type | 802.11a/b/g/n/ac |
Stock: 2348
Distributors
pcbx
pcbxUnit Price$1.11996
Ext.Price$1.11996
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.11996 | $1.11996 |
| 10 | $0.82586 | $8.25860 |
| 25 | $0.75063 | $18.76575 |
| 50 | $0.70886 | $35.44300 |
| 100 | $0.66941 | $66.94100 |
| 300 | $0.63699 | $191.09700 |
| 500 | $0.60614 | $303.07000 |
| 1000 | $0.58648 | $586.48000 |
| 3000 | $0.56203 | $1686.09000 |
| 5000 | $0.53860 | $2693.00000 |
| 10000 | $0.53860 | $5386.00000 |
