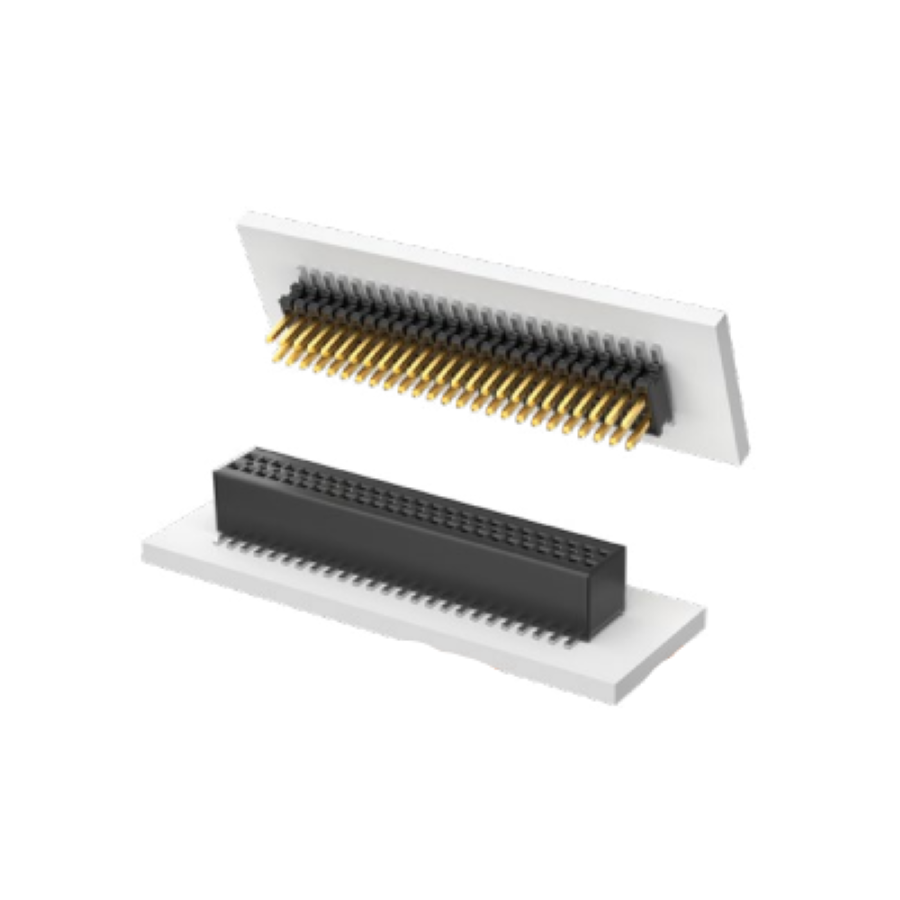

CLE-120-01-G-DV-A
Manufacturer:
Samtec
Mfr.Part #:
CLE-120-01-G-DV-A
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle, Pass Through Number of Positions:40 Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 16 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 3.18 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 800 µm |
| Max Current Rating | 3.1 A |
| Orientation | Straight |
| Gender | Socket (Female) |
| Number of Contacts | 40 |
| Connector Type | Receptacle, Pass Through |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 1.25 mm |
| Housing Material | Polymer |
| Contact Resistance | 15 mΩ |
| Housing Color | Black |
Stock: 72
Distributors
pcbx
pcbxUnit Price$4.64313
Ext.Price$4.64313
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.64313 | $4.64313 |
| 10 | $4.29346 | $42.93460 |
| 25 | $4.06177 | $101.54425 |
| 50 | $3.10336 | $155.16800 |
| 100 | $2.37109 | $237.10900 |
| 300 | $1.81161 | $543.48300 |
| 500 | $1.38414 | $692.07000 |
| 1000 | $1.05755 | $1057.55000 |
