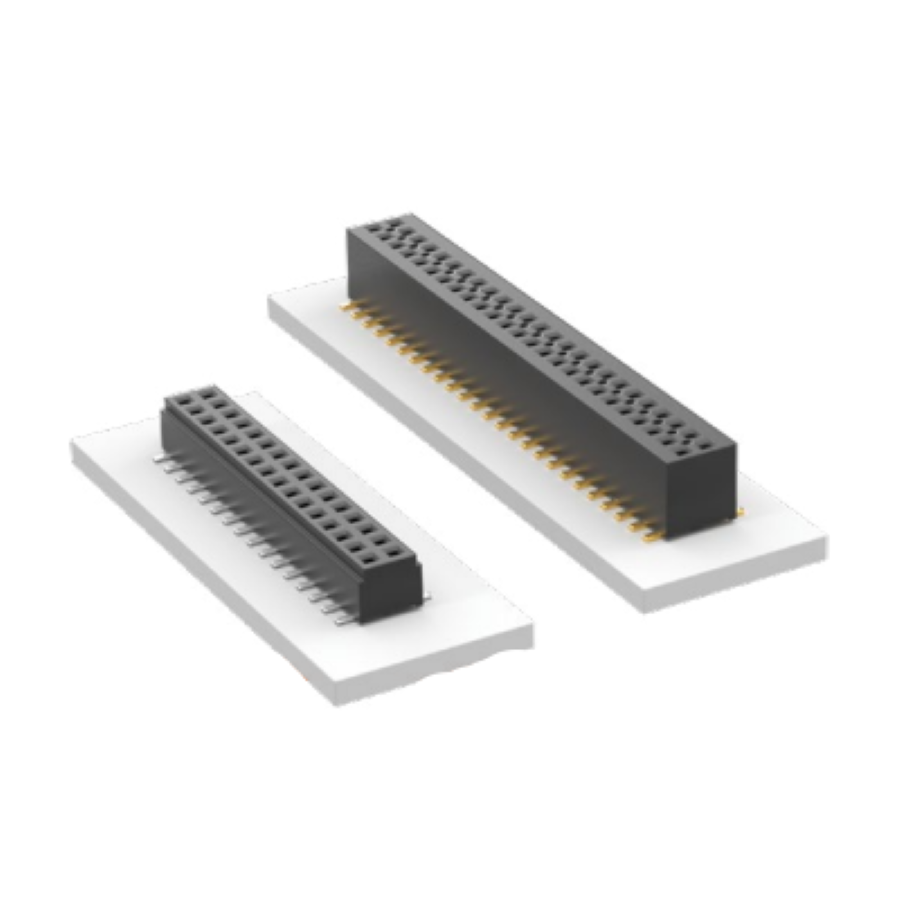

CLM-106-02-F-D
Manufacturer:
Samtec
Mfr.Part #:
CLM-106-02-F-D
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle Number of Positions:12 Pitch:1 mm
| Parameter | Value |
|---|---|
| Length | 6.31 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 12 |
| Connector Type | Receptacle |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 1 mm |
| Housing Material | Polymer |
| Contact Resistance | 15 mΩ |
| Housing Color | Black |
Stock: 182
Distributors
pcbx
pcbxUnit Price$1.55170
Ext.Price$1.55170
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.55170 | $1.55170 |
| 10 | $1.46582 | $14.65820 |
| 25 | $1.38469 | $34.61725 |
| 50 | $1.30804 | $65.40200 |
| 100 | $1.14648 | $114.64800 |
| 300 | $1.00487 | $301.46100 |
| 500 | $0.88075 | $440.37500 |
| 1000 | $0.77196 | $771.96000 |
| 3000 | $0.67661 | $2029.83000 |
| 5000 | $0.59304 | $2965.20000 |
| 10000 | $0.51980 | $5198.00000 |
