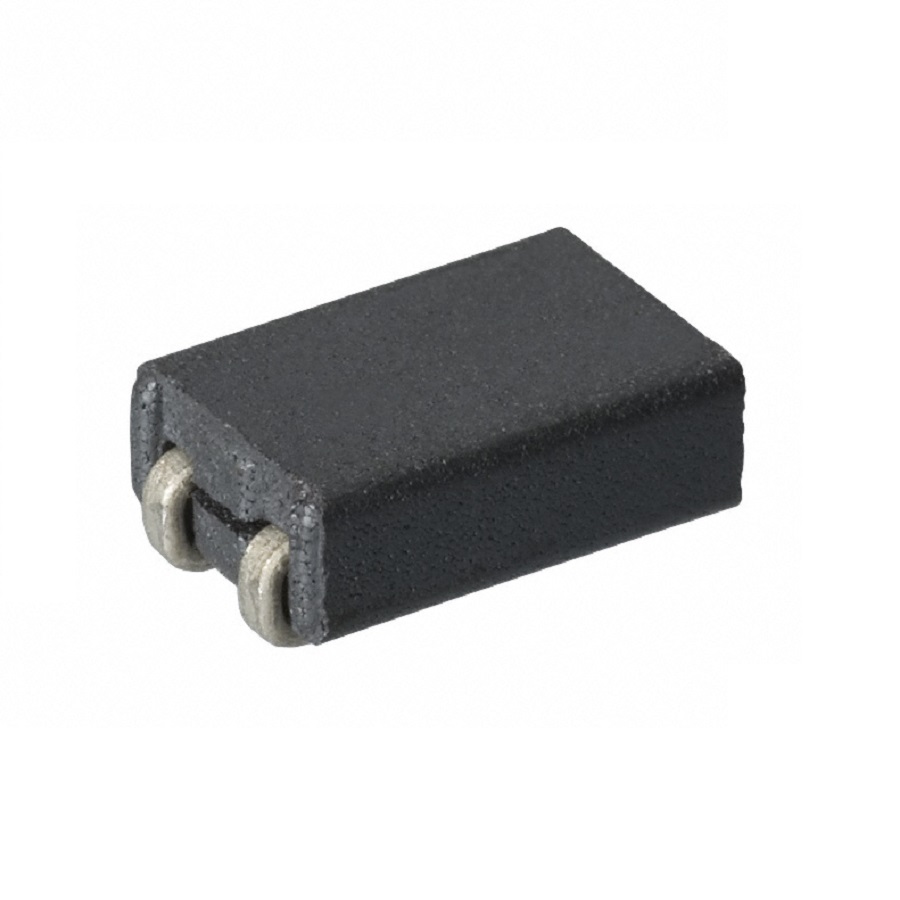

CM3421Y600R-10
Manufacturer:
Laird
Mfr.Part #:
CM3421Y600R-10
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:15 A Number of Lines:2 60 Ω Frequency:100 MHz 800 µΩ
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 140 V |
| Length | 8.68 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 3822 |
| Case Code (Metric) | 8531 |
| Composition(Kit Type) | Wirewound |
| Height | 2.85 mm |
| Packaging | Reel |
| Depth | 5.7 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 583.319788 mg |
| Contact Plating | Tin |
| Impedance | 60 Ω |
| Frequency | 100 MHz |
| Type | Power Line |
| Current | 15 A |
| Current Rating | 15 A |
| DC Resistance (DCR) | 800 µΩ |
| Max Current Rating | 15 A |
| Test Frequency | 100 MHz |
| Lifecycle Status | Production (Last Updated: 4 months ago) |
| Shielding | Unshielded |
| Number of Lines | 2 |
| RMS Current (Irms) | 15 A |
| Max DC Current | 15 A |
| Series Resistance | 750 µΩ |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 months ago) |
Stock: 19769
Distributors
pcbx
pcbxUnit Price$0.50697
Ext.Price$0.50697
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50697 | $0.50697 |
| 10 | $0.41550 | $4.15500 |
| 25 | $0.36249 | $9.06225 |
| 50 | $0.35208 | $17.60400 |
| 100 | $0.34197 | $34.19700 |
| 300 | $0.31897 | $95.69100 |
| 500 | $0.29751 | $148.75500 |
| 1000 | $0.28384 | $283.84000 |
| 3000 | $0.24964 | $748.92000 |
