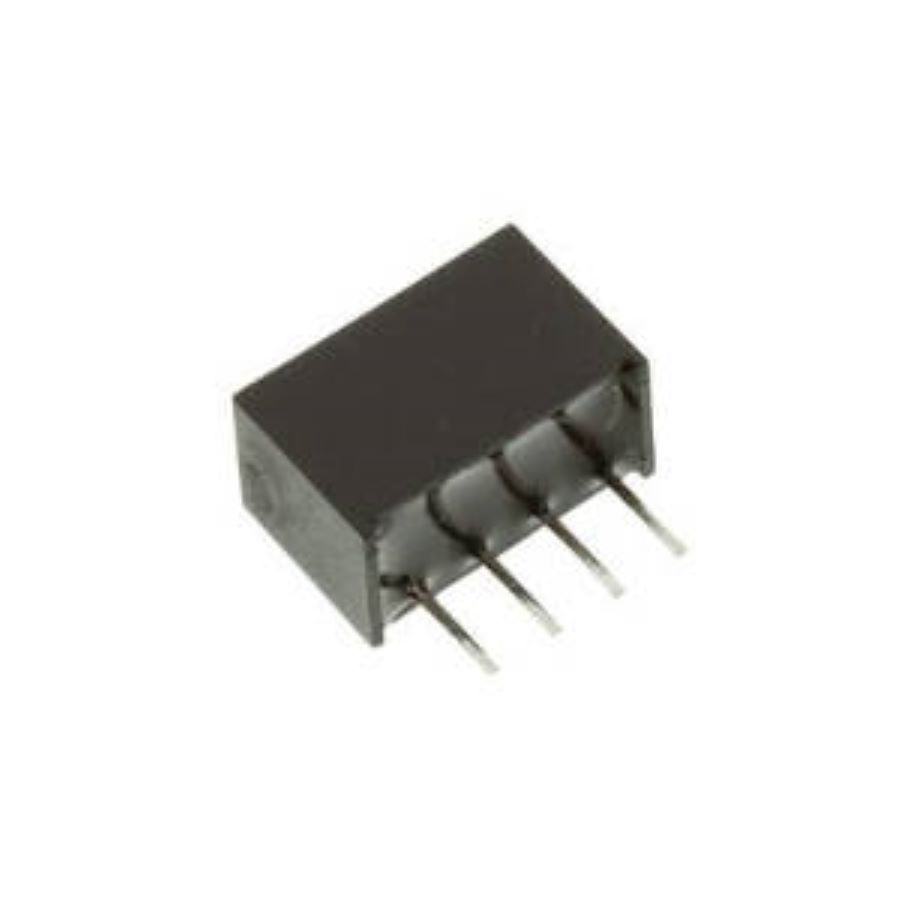

CME0303S3C
Manufacturer:
Murata
Mfr.Part #:
CME0303S3C
Datasheet:
Description:
DC to DC Converters 11.48mmL×6mmW×7.46mmH Through Hole Nominal Input Voltage:3.3 V Min Input Voltage:2.97 V Max Input Voltage:3.63 V 73 %
| Parameter | Value |
|---|---|
| Length | 11.43 mm |
| Width | 6.096 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 750 mW |
| Height | 7.366 mm |
| Packaging | Tube |
| Depth | 7.46 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 1.090011 g |
| Contact Plating | Tin |
| Min Input Voltage | 2.97 V |
| Output Current | 227 mA |
| Output Voltage | 3.3 V |
| Max Power Dissipation | 750 mW |
| Max Output Current | 227 mA |
| Max Input Voltage | 3.63 V |
| Number of Outputs | 1 |
| Isolation Voltage | 3 kV |
| Output Power | 750 mW |
| Current - Output 1 | 227 mA |
| Efficiency | 73 % |
| Voltage - Output 1 | 3.3 V |
| Max Input Voltage (DC) | 3.63 V |
| Nominal Output Voltage | 3.3 V |
| Nominal Input Voltage | 3.3 V |
| Max Output Power | 750 mW |
| Min Input Voltage (DC) | 2.97 V |
| Voltage - Output 2 | 3.3 V |
| Schedule B | 8542390000 |
| Output Current-Channel 1 | 227 mA |
| Output Voltage-Channel 1 | 3.3 V |
Stock: 265
Distributors
pcbx
pcbxUnit Price$2.03367
Ext.Price$2.03367
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.03367 | $2.03367 |
| 10 | $2.00848 | $20.08480 |
| 25 | $1.98970 | $49.74250 |
| 50 | $1.93964 | $96.98200 |
| 100 | $1.83954 | $183.95400 |
| 300 | $1.71990 | $515.97000 |
| 500 | $1.60805 | $804.02500 |
| 1000 | $1.50792 | $1507.92000 |
