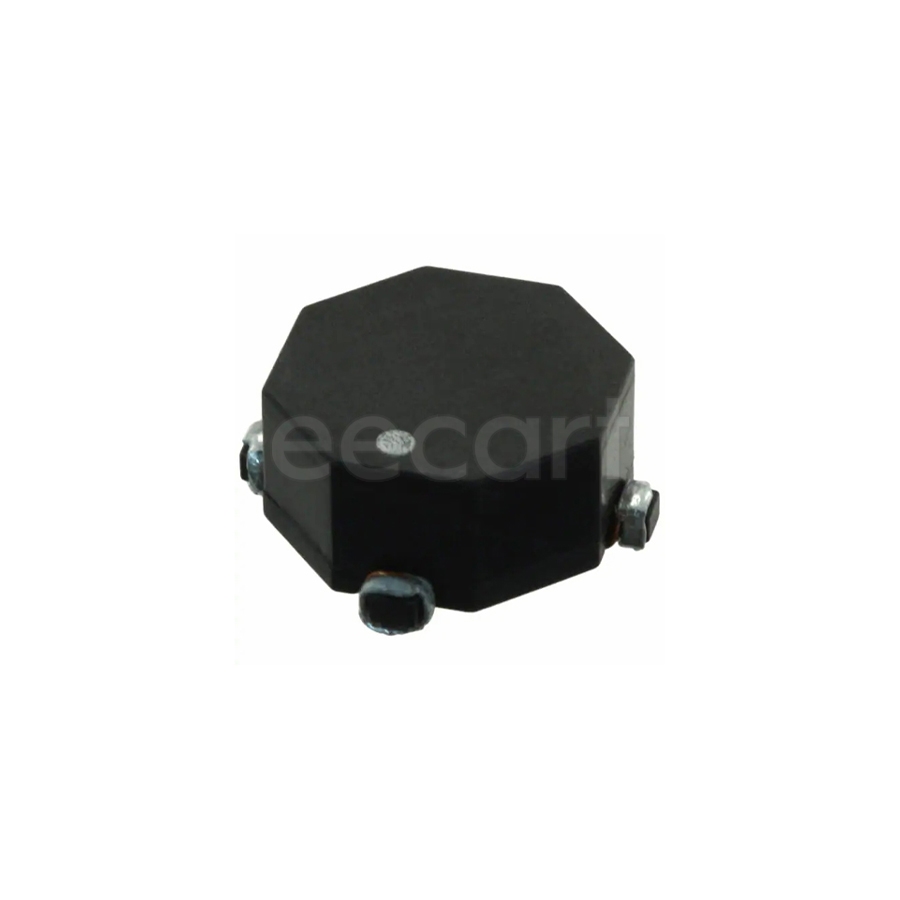

CMS3-8-R
Manufacturer:
Eaton
Mfr.Part #:
CMS3-8-R
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:2 A Number of Lines:2 40 mΩ 350 µH
| Parameter | Value |
|---|---|
| Length | 11.43 mm |
| Width | 11.43 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 160 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 6 mm |
| Packaging | Reel |
| Depth | 13.97 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 2.267962 g |
| Self Resonant Frequency | 100 kHz |
| Type | Toroidal |
| Current | 2 A |
| Current Rating | 2 A |
| DC Resistance (DCR) | 40 mΩ |
| Max Current Rating | 2 A |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Number of Lines | 2 |
| Inductance | 350 µH |
| Core Material | Ferrite |
| Max DC Current | 2 A |
| DC Current | 2 A |
Stock: 252
Distributors
pcbx
pcbxUnit Price$3.09212
Ext.Price$3.09212
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.09212 | $3.09212 |
| 10 | $2.54489 | $25.44890 |
| 25 | $2.35413 | $58.85325 |
| 50 | $2.21956 | $110.97800 |
| 100 | $2.11682 | $211.68200 |
| 300 | $2.07450 | $622.35000 |
| 500 | $2.03301 | $1016.50500 |
