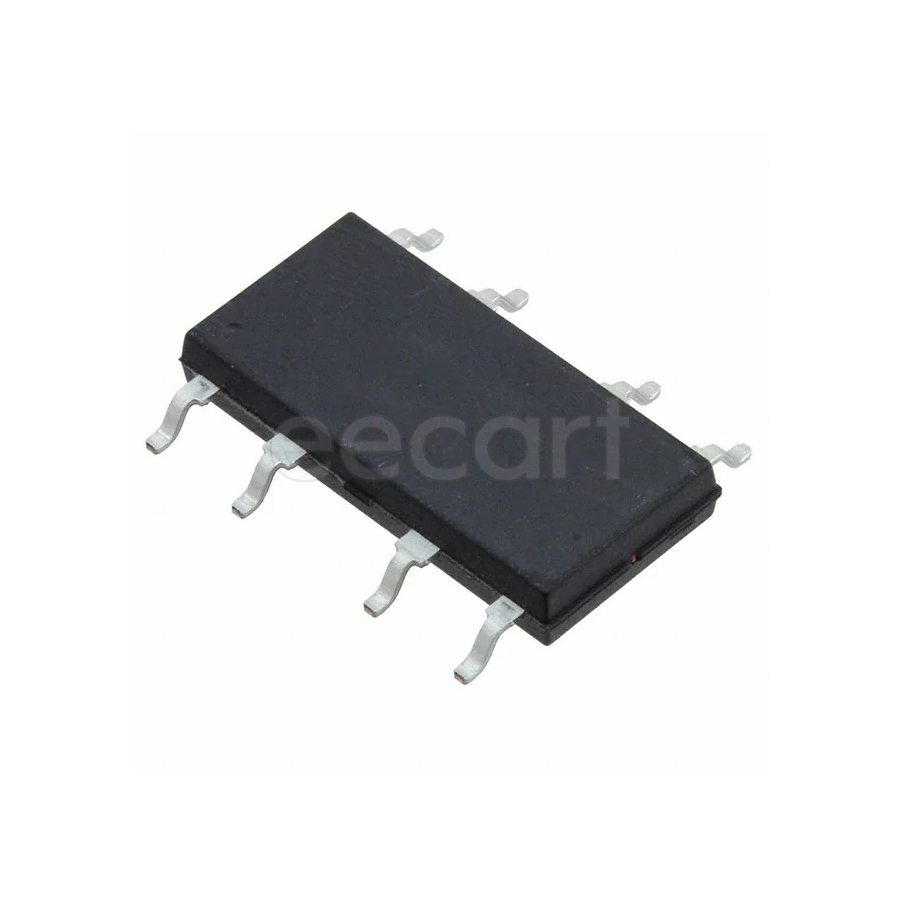

CPC2030N
Manufacturer:
IXYS
Mfr.Part #:
CPC2030N
Datasheet:
Description:
Solid State Relays SMD/SMT 120 mA Height:2.184 mm Length:9.3 mm Width:3.81 mm 0 V to 350 V
| Parameter | Value |
|---|---|
| Length | 9.3 mm |
| Width | 3.81 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Resistance | 30 Ω |
| Height | 2.184 mm |
| Circuit Type | SPST-NO (1 Form A)×2 |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Output Current | 120 mA |
| Output Type | AC, DC |
| Max Power Dissipation | 600 mW |
| Max Output Current | 120 mA |
| Throw Configuration | DPST |
| Isolation Voltage | 1 kV |
| Load Current | 120 mA |
| Input Current | 50 mA |
| Max Input Current | 50 mA |
| Input Voltage | 1.2 V |
| Max Output Voltage | 350 V |
| On-State Resistance | 30 Ω |
| Load Voltage | 0 V to 350 V |
Stock: 1701
Distributors
pcbx
pcbxUnit Price$1.41406
Ext.Price$1.41406
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.41406 | $1.41406 |
| 10 | $1.26444 | $12.64440 |
| 25 | $1.20801 | $30.20025 |
| 50 | $1.15757 | $57.87850 |
| 100 | $1.10115 | $110.11500 |
| 300 | $1.04366 | $313.09800 |
| 500 | $0.98916 | $494.58000 |
| 1000 | $0.93399 | $933.99000 |
| 3000 | $0.88190 | $2645.70000 |
| 5000 | $0.83270 | $4163.50000 |
