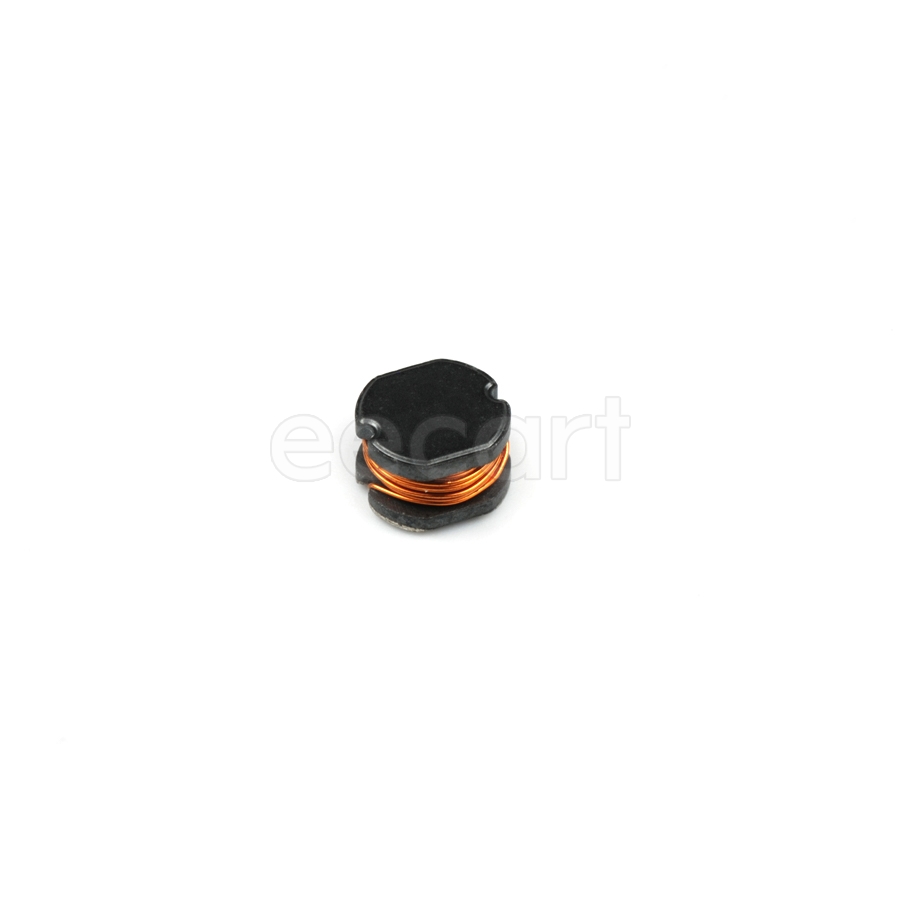

CR75NP-221KC
Manufacturer:
Sumida
Mfr.Part #:
CR75NP-221KC
Datasheet:
Description:
Fixed Inductors 7.80mmL×7.00mmW×5.00mmH SMD/SMT 220 µH 10 % 490 mA 960 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 5.52 mm |
| Length | 7.7978 mm |
| Width | 7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 5 mm |
| Packaging | Reel |
| Depth | 7.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Self Resonant Frequency | 5.2 MHz |
| Current Rating | 490 mA |
| DC Resistance (DCR) | 960 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 220 µH |
| Core Material | Ferrite |
| Max DC Current | 490 mA |
| DC Current | 490 mA |
| Type | Wirewound |
Stock: 491
Distributors
pcbx
pcbxUnit Price$0.50691
Ext.Price$0.50691
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50691 | $0.50691 |
| 10 | $0.41422 | $4.14220 |
| 25 | $0.38812 | $9.70300 |
| 50 | $0.36366 | $18.18300 |
| 100 | $0.34075 | $34.07500 |
| 300 | $0.31604 | $94.81200 |
| 500 | $0.29313 | $146.56500 |
| 1000 | $0.27188 | $271.88000 |
