LPD5030-473MRC
Manufacturer:
Coilcraft
Mfr.Part #:
LPD5030-473MRC
Datasheet:
Description:

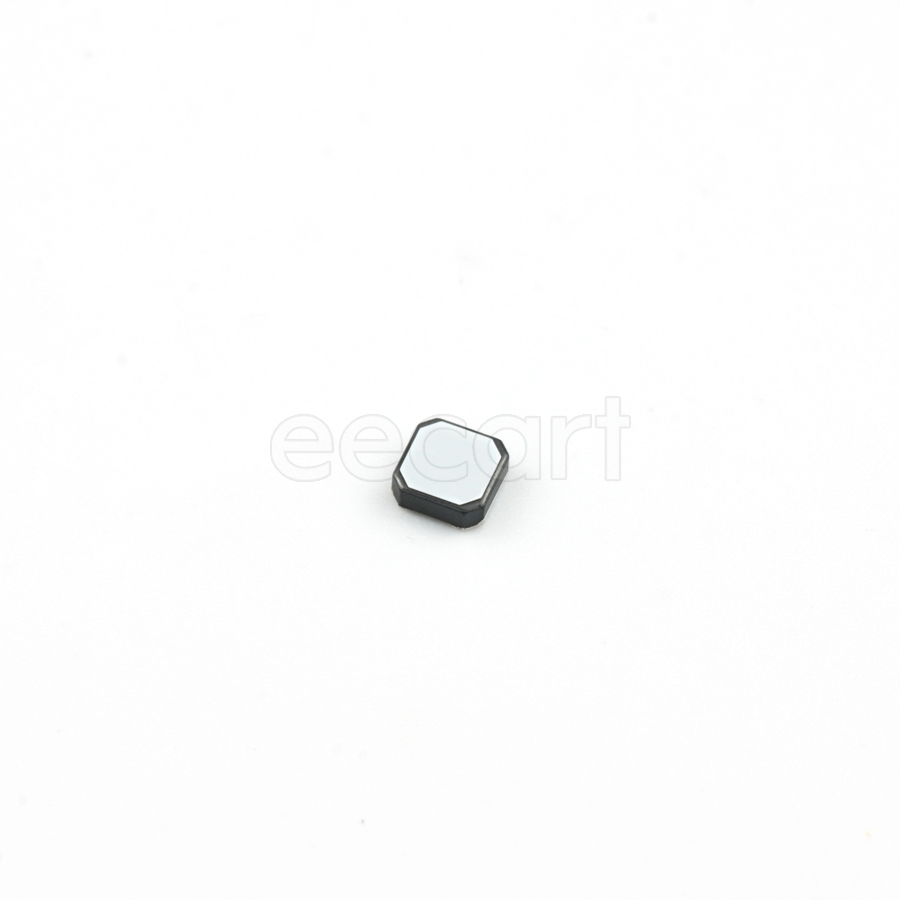

Inductors, Coils, Chokes 4.80mmL×4.80mmW×2.90mmH SMD/SMT 47 µH 806 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 4.8 mm |
| Width | 4.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 403 mΩ |
| Height | 900 µm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| DC Resistance (DCR) | 806 mΩ |
| Lifecycle Status | Production (Last Updated: 20 hours ago) |
| Core Material | Ferrite |
| RMS Current (Irms) | 500 mA |
| Inductance - Parallel | 47 µH |
| Inductance | 47 µH |
| Height - Seated (Max) | 2.9 mm |
Stock: 680
Distributors
pcbx
pcbxUnit Price$1.66309
Ext.Price$1.66309
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.66309 | $1.66309 |
| 10 | $1.40620 | $14.06200 |
| 25 | $1.35032 | $33.75800 |
| 50 | $1.29667 | $64.83350 |
| 100 | $1.11961 | $111.96100 |
| 300 | $0.96673 | $290.01900 |
| 500 | $0.83474 | $417.37000 |
