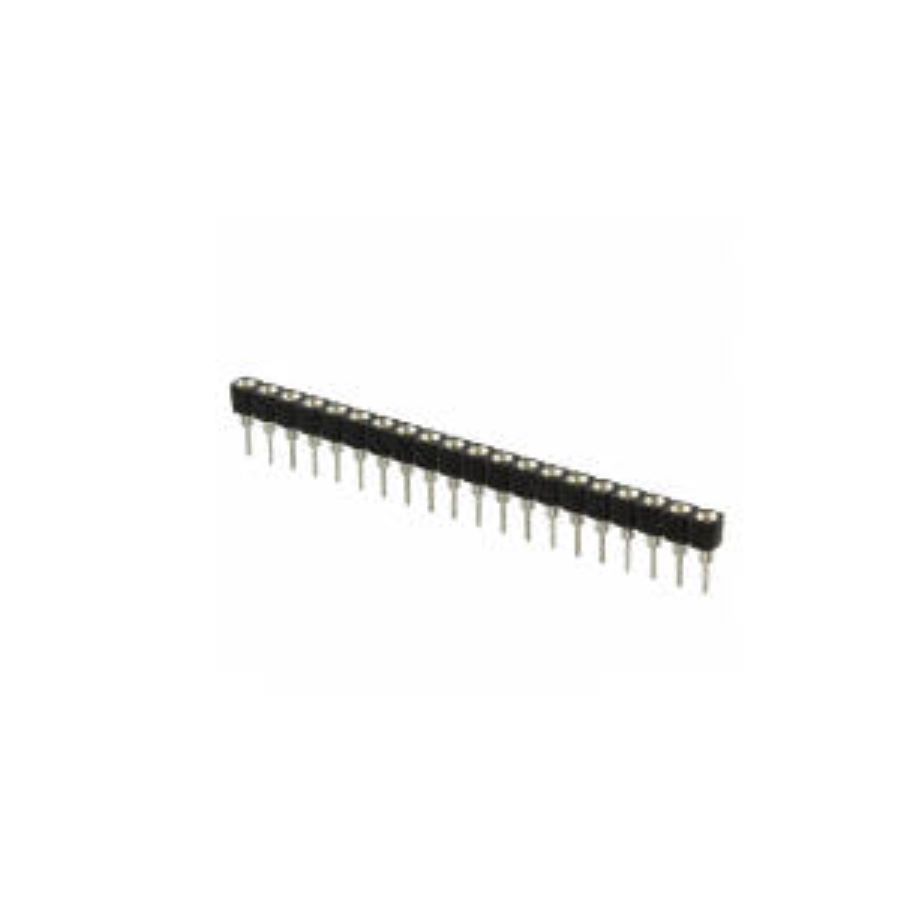

D01-9972042
Manufacturer:
Harwin
Mfr.Part #:
D01-9972042
Datasheet:
Description:
IC and Component Sockets Through Hole SIP, Socket Number of Positions:20 Number of Rows:1 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 50.8 mm |
| Width | 4.2 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 2.54 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 150 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Number of Contacts | 20 |
| Connector Type | SIP, Socket |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Housing Material | Glass |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Housing Color | Black |
| Contact Finish - Mating | Gold |
Stock: 12445
Distributors
pcbx
pcbxUnit Price$1.20749
Ext.Price$1.20749
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20749 | $1.20749 |
| 10 | $1.02735 | $10.27350 |
| 25 | $0.96748 | $24.18700 |
| 50 | $0.91110 | $45.55500 |
| 100 | $0.85801 | $85.80100 |
| 300 | $0.80802 | $242.40600 |
| 500 | $0.76864 | $384.32000 |
| 1000 | $0.73118 | $731.18000 |
| 3000 | $0.69555 | $2086.65000 |
| 5000 | $0.66165 | $3308.25000 |
