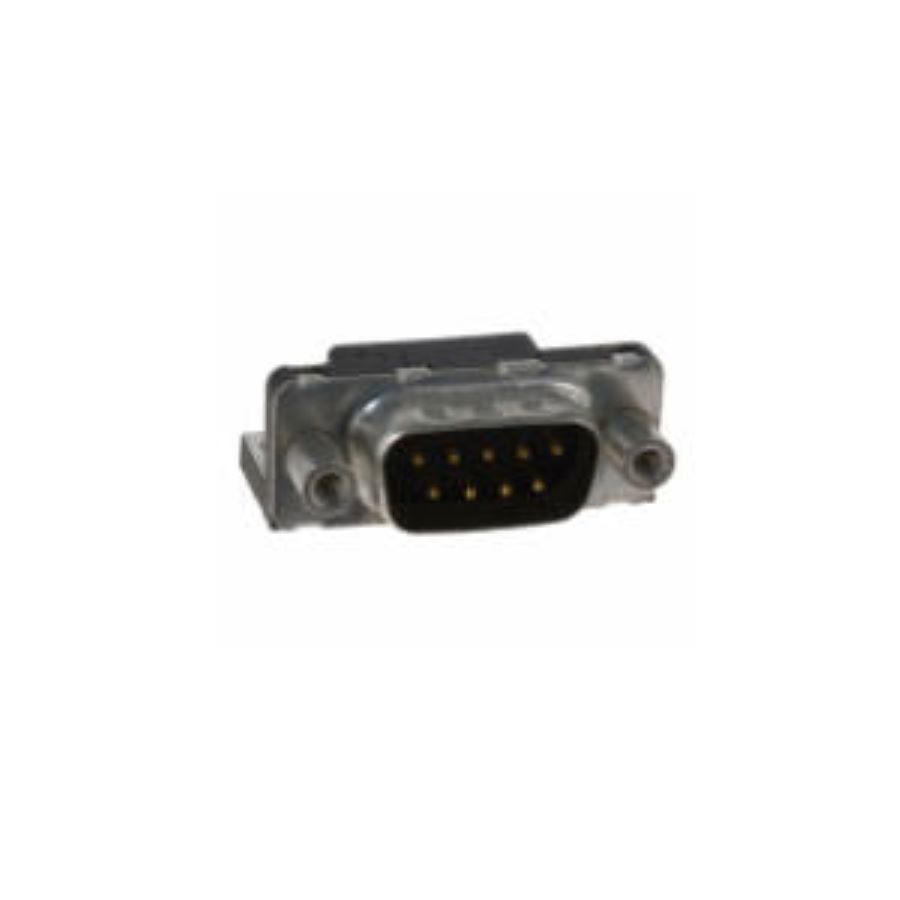

D09P33E4GV00LF
Manufacturer:
Amphenol
Mfr.Part #:
D09P33E4GV00LF
Datasheet:
Description:
D-Sub Connectors Through Hole Plug Number of Positions:9 Solder Male
| Parameter | Value |
|---|---|
| Length | 30.81 mm |
| Width | 12.55 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 9 |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 18.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.84 mm |
| Type | Plug |
| Number of Terminals | 9 |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 9 |
| Body Material | Metal |
| Connector Type | D-Sub, Plug, Signal |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Housing Material | PBT |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Housing Color | Black |
| Contact Gender | Male |
| Shell Material | Steel |
Stock: 182
Distributors
pcbx
pcbxUnit Price$1.63976
Ext.Price$1.63976
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.63976 | $1.63976 |
| 10 | $1.30804 | $13.08040 |
| 25 | $1.22357 | $30.58925 |
| 50 | $1.14455 | $57.22750 |
| 100 | $1.07063 | $107.06300 |
| 300 | $1.00149 | $300.44700 |
| 500 | $0.93681 | $468.40500 |
| 1000 | $0.87630 | $876.30000 |
