D09S33E4GV00LF
Manufacturer:
Amphenol
Mfr.Part #:
D09S33E4GV00LF
Datasheet:
Description:

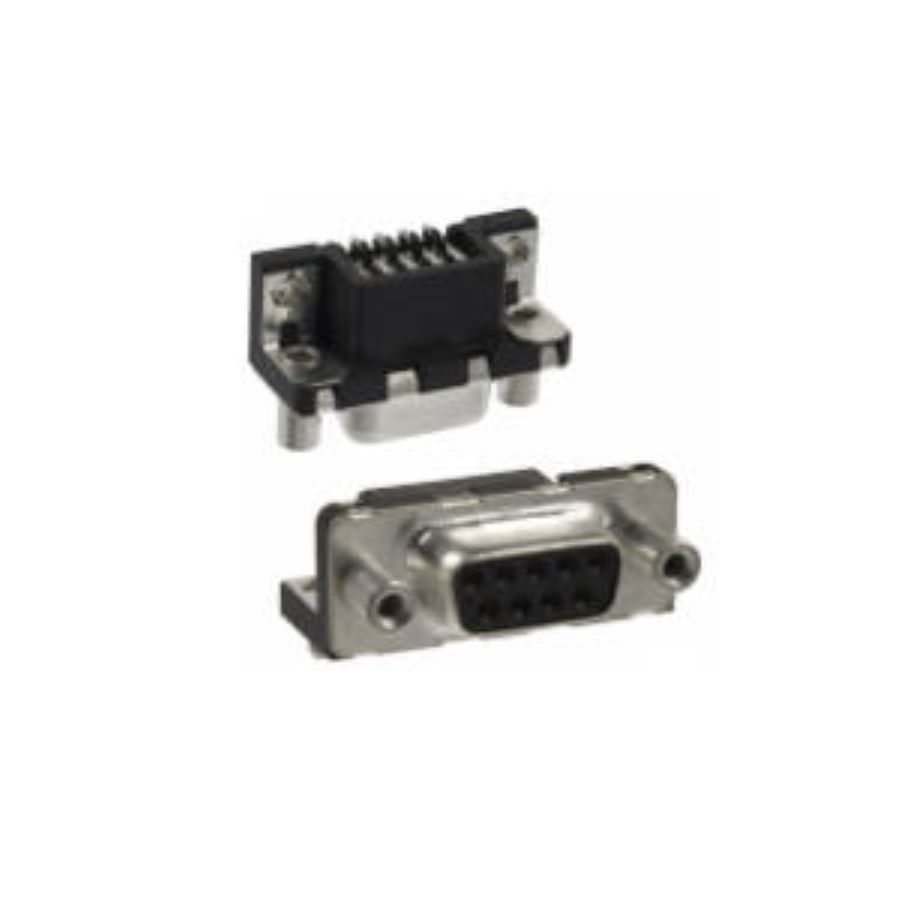

D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:9 Solder Female
| Parameter | Value |
|---|---|
| Length | 30.81 mm |
| Width | 12.55 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 18.77 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.84 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 9 |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Number of Contacts | 9 |
| Body Material | Metal |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Housing Material | PBT |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Housing Color | Black |
| Plating | Tin |
| Contact Gender | Female |
| Shell Material | Steel |
Stock: 2180
Distributors
pcbx
pcbxUnit Price$1.11397
Ext.Price$1.11397
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.11397 | $1.11397 |
| 10 | $0.86348 | $8.63480 |
| 25 | $0.81650 | $20.41250 |
| 50 | $0.77207 | $38.60350 |
| 100 | $0.73006 | $73.00600 |
| 300 | $0.69034 | $207.10200 |
| 500 | $0.65278 | $326.39000 |
| 1000 | $0.61726 | $617.26000 |
