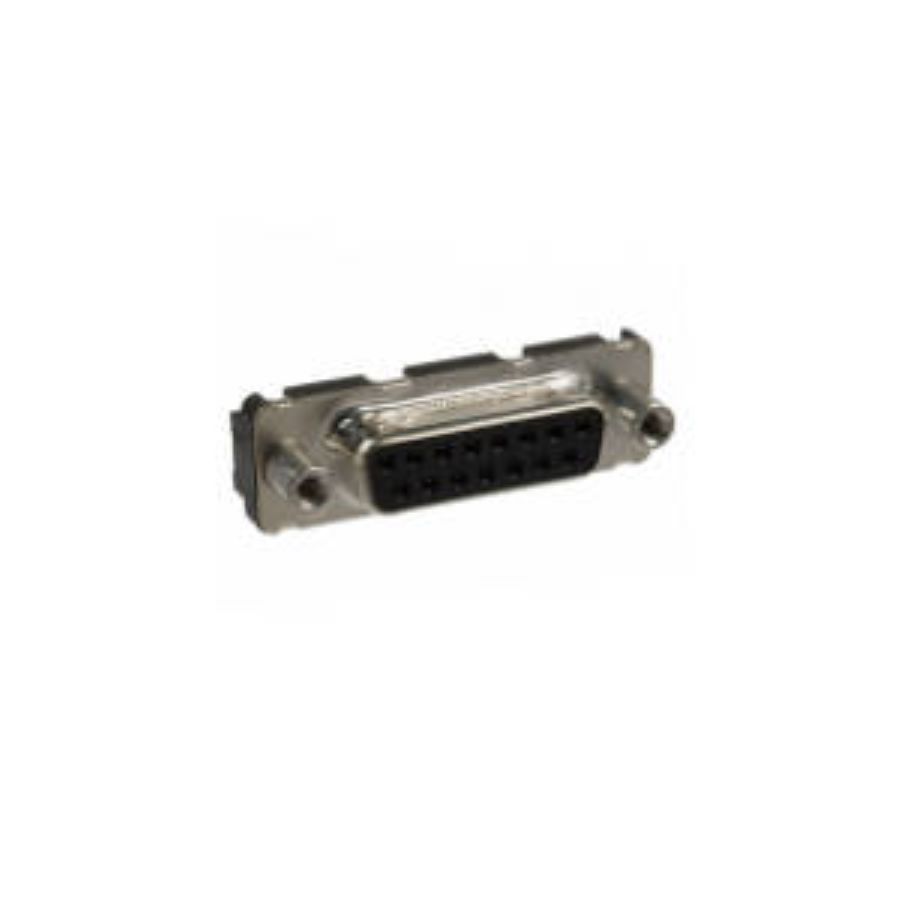

D15S24A4GV00LF
Manufacturer:
Amphenol
Mfr.Part #:
D15S24A4GV00LF
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:15 Solder Female
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Length | 39.14 mm |
| Width | 12.17 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Material | Steel |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 12.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.74 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 15 |
| Current Rating | 5 A |
| Working Voltage | 350 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 15 |
| Body Material | Metal |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Housing Material | Polybutylene |
| Number of Ports | 1 |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Housing Color | Black |
| Body Plating | Tin |
| Contact Gender | Female |
| Shell Material | Steel |
Stock: 366
Distributors
pcbx
pcbxUnit Price$1.21999
Ext.Price$1.21999
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.21999 | $1.21999 |
| 10 | $1.17638 | $11.76380 |
| 25 | $1.13278 | $28.31950 |
| 50 | $1.06353 | $53.17650 |
| 100 | $0.99514 | $99.51400 |
| 300 | $0.97596 | $292.78800 |
| 500 | $0.95715 | $478.57500 |
| 1000 | $0.93871 | $938.71000 |
