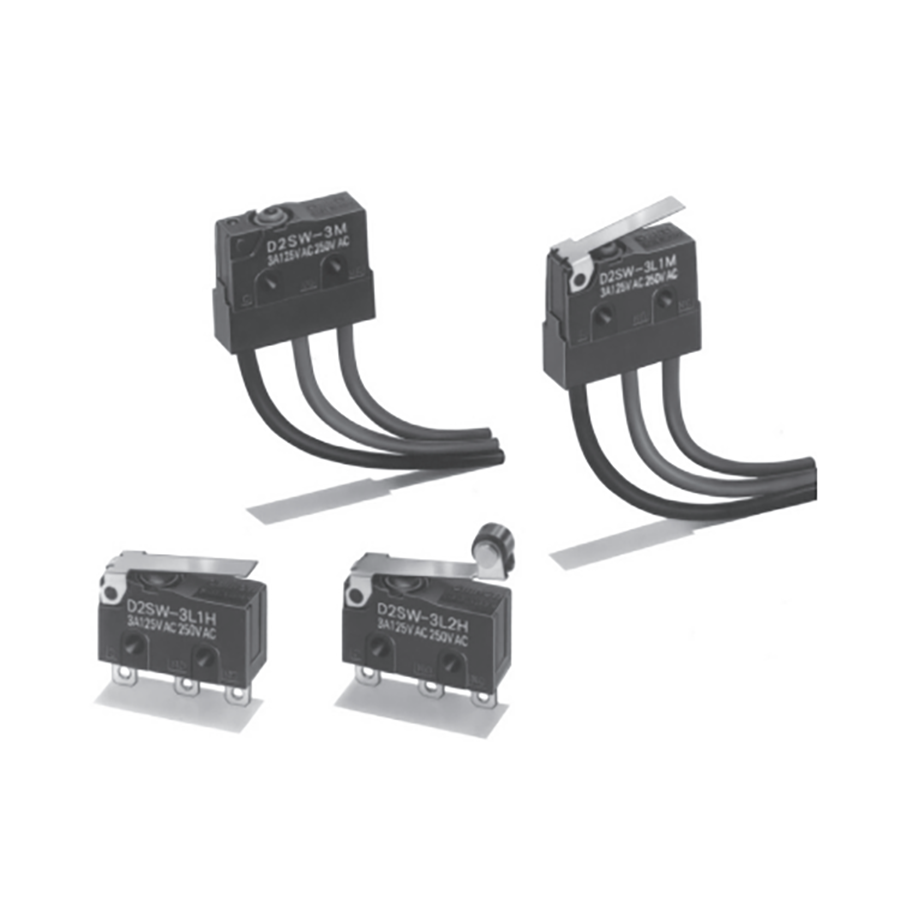

D2SW-01L2HS
Manufacturer:
Omron
Mfr.Part #:
D2SW-01L2HS
Datasheet:
Description:
Snap Action / Limit Switches Chassis Mount SPDT On-Mom Current Rating:100 mA Operating Force:590 mN Lever, Roller
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Circuit Type | SPDT |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 2 g |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Material(Contact Finish) | Gold |
| Current Rating | 100 mA |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Throw Configuration | SPDT |
| Switch Function | On-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 200 kcycles |
| Operating Force | 590 mN |
| Mechanical Life | 5 Mcycles |
| Differential Travel | 787.4 µm |
| Overtravel | 1.016 mm |
| Operating Position | 14.5034 mm |
| Contact Current Rating | 100 mA |
| Actuator Type | Lever, Roller |
| Termination Style | Solder Lug |
| Life (Cycles) | 200 kCycles |
| Schedule B | 8536509040 |
| IP Rating(Ingress Protection) | IP67 |
| Release Force | 6.118 gf |
